Brand:BENTLY NEVADA
Model: 3500/40M
Status: New/Used
Bently Nevada 3500/40M is a four channel Proximitor monitor designed to provide radial vibration, axial displacement, differential expansion, eccentricity, and REBAM for rotating machinery ® Real time monitoring and protection of key parameters. The module receives displacement signals through eddy current sensors, processes them through 16 bit ADCs and programmable filters, and compares them with user-defined alarm thresholds to achieve the dual goals of millisecond level mechanical protection and predictive maintenance.
BENTLY NEVADA 3500/40M

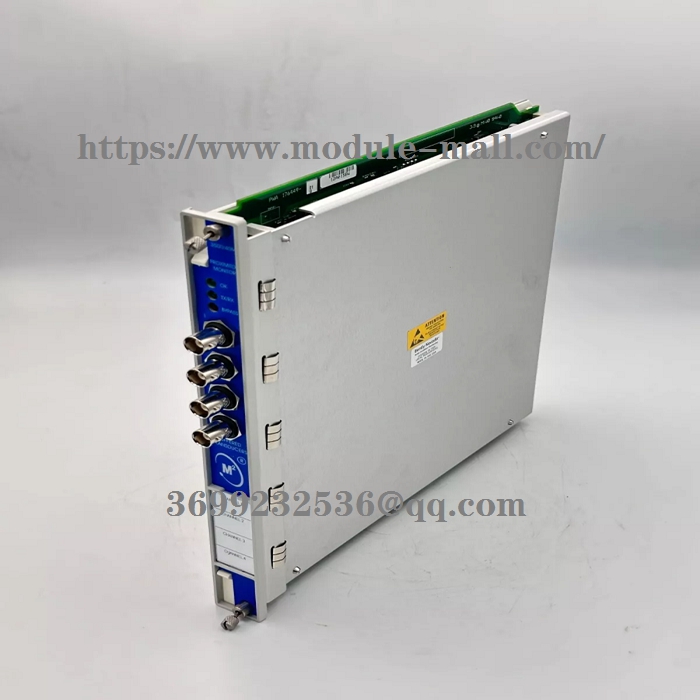

BENTLY NEVADA 3500/40M Proximitor Monitor
The3500/40M Proximitor Monitoris a four-channel monitor that accepts input from Bently Nevada proximity transducers,conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:
• Radial vibration
• Eccentricity
• REBAM
• Thrust position
• Differential expansion
The primary purpose of the3500/40MProximitor Monitoris to provide the following:
1）Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
2）Essential machine information for both operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
You program the monitor channels in pairs. The monitor channels can perform up to 2 of these functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function.
Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
Many products have not been launched yet. If you need more products, please contact us
Purchase consultation hotline: 18120742318
Email: [email protected]
BENTLY NEVADA 3500/40M前置器监测器
3500/40M前置器监测器是一个四通道监测器，可接受Bently Nevada接近传感器的输入，调节信号以提供各种振动和位置测量值，并将调节后的信号与用户可编程报警进行比较。用户可以使用3500机架配置软件对3500/40M的每个通道进行编程，以执行以下任何功能：
•径向振动
•偏心
•钢筋
•推力位置
•胀差
3500/40M血氧监测仪的主要目的是提供以下功能：
1） 通过持续比较监测参数与配置的报警设定点来驱动报警，从而保护机械
2） 操作和维护人员的基本机器信息
根据配置，每个通道通常会调节其输入信号，以生成各种称为静态值的参数。您可以为每个活动静态值配置警报设定点，并为任意两个活动静态值设置危险设定点。
您成对地对监视器通道进行编程。监视器通道一次最多可以执行这些功能中的2个。通道1和2可以执行一个功能，而通道3和4执行另一个（或相同）功能。
其他型号：3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
