Brand:BENTLY NEVADA
Model: 3500/05
Status: New/Used
Bently Nevada 3500/05 is the core component of the Bently Nevada 3500 series mechanical protection and condition monitoring system, used for installing and connecting other monitoring modules, providing power and backplane communication for each module. This rack comes in two sizes: full-size (19 inches, 14 module slots) and mini size (12 inches, 7 module slots), supporting panel installation, rack installation, and partition installation. It provides basic support for communication and power distribution between 3500 series modules, ensuring stable system operation.
BENTLY NEVADA 3500/05

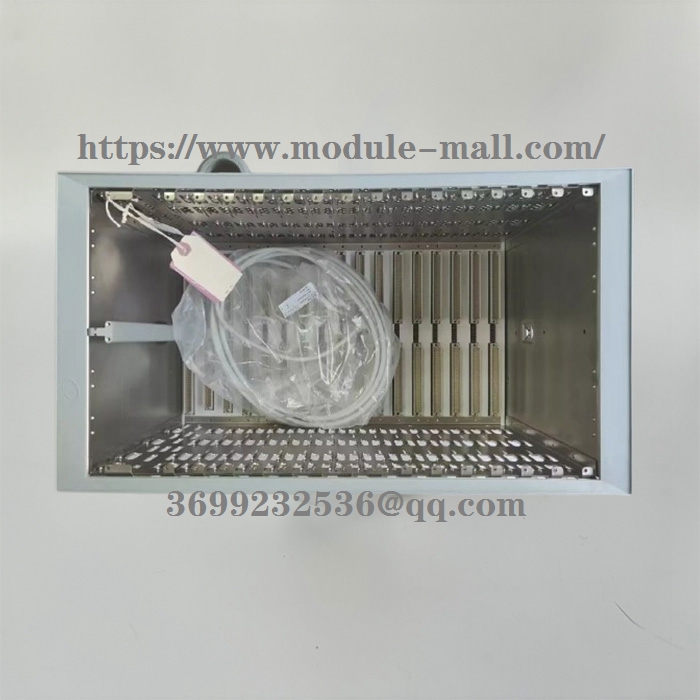

BENTLY NEVADA 3500/05 System Rack
Use the 3500 System rack to mount all 3500 monitor modules and power supplies. The rack allows you to place 3500 modules near one another, enabling them to easily communicate, and to mount power supplies necessary to distribute power to each module.
3500 racks are available in two sizes:
Full-size rack. 19-inch EIA rack with 14 available module slots.
Mini-rack. 12-inch rack with seven available module slots.
You can order 3500 racks in three formats:

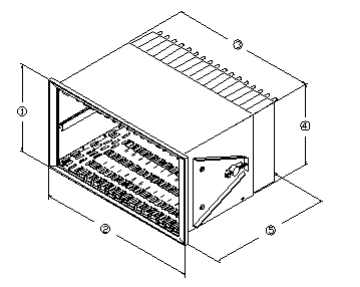

Panel mount. This rack format mounts to rectangular cut-outs in panels, and secures to the panel using clamps supplied with the rack. Wiring connections and I/O modules are accessible from the rear of the rack.
Rack mount. This rack format mounts the 3500 Rack on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack.

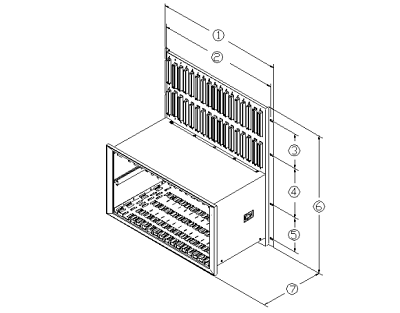

Bulkhead mount. This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.
The power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions(seven rack positions for the mini-rack) are available for any combination of modules.
Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
Many products have not been launched yet. If you need more products, please contact us
Purchase consultation hotline: 18120742318
Email: [email protected]
BENTLY NEVADA 3500/05系统机架
使用3500系统机架安装所有3500监测器模块和电源。该机架允许您将3500个模块彼此靠近放置，使它们能够轻松通信，并安装向每个模块分配电源所需的电源。
3500机架有两种尺寸可供选择：
全尺寸机架。19英寸EIA机架，带14个可用模块插槽。
迷你机架。12英寸机架，有七个可用模块插槽。
您可以订购三种格式的3500机架：
面板安装。这种机架格式安装在面板的矩形切口上，并使用机架附带的夹具固定在面板上。接线连接和I/O模块可从机架后部访问。
机架安装。这种机架格式将3500机架安装在19英寸EIA导轨上。接线连接和I/O模块可从机架后部访问。
舱壁安装。当无法接近机架后部时，这种机架格式将机架安装在墙上或面板上。接线连接和I/O模块可从机架前部访问。3500/05迷你机架没有这种格式。
电源和机架接口模块必须位于最左侧的机架位置。其余14个机架位置（迷你机架的7个机架位置）可用于任何模块组合。
