Brand:BENTLY NEVADA
Model: 3500/62
Status: New/Used
3500/62 is a process variable monitor produced by Bently Nevada Corporation, mainly used to monitor key parameters in industrial processes. It belongs to the Bently Nevada 3500 series products, which are renowned for their reliability, high precision, and wide range of applications. Multi channel monitoring: 3500/62 typically has multiple channels that can simultaneously monitor multiple process variables, such as temperature, pressure, flow rate, etc. High precision: Advanced measurement technology is adopted to ensure the accuracy of measurement data.

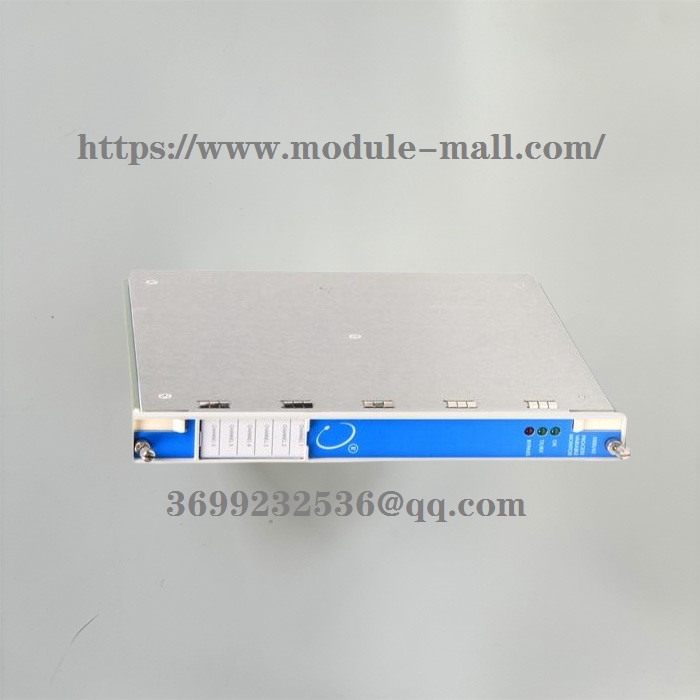

BENTLY NEVADA 3500/62
BENTLY NEVADA 3500/62 Process Variable Monitor
The 3500/62 process variable monitor is a 6-channel monitor used for monitoring key parameters of machining machines, such as pressure, flow rate, temperature, and liquid level, continuously. The monitor accepts+4 to+20 mA current input or any proportional voltage input between 10 Vdc and+10 Vdc. It regulates these signals and compares the conditional signals with user programmable alarm settings.
3500/62 monitor:
1) Continuously compare monitoring parameters with configured alarm settings to drive alarm mechanical protection.
2) Provide necessary machine information for operation and maintenance personnel.
You can use the 3500 rack configuration software to program the 3500/62 to perform current or voltage measurements. The 3500/62 provides I/O modules for three signal input scenarios:+/-10V DC, isolated 4-20mA or 420mA with intrinsic safety rectification barriers. Internal barrier/O provides external access
The power input terminal provides an inherently safe power supply for the 4-20mA transducer.
When used in triple modular redundancy (TMR) configurations, process variable monitors must be installed in groups of three adjacent to each other. When used in this configuration, the monitor adopts two types of voting to ensure accurate operation and avoid losing mechanical protection due to a single point of failure.
Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
Many products have not been launched yet. If you need more products, please contact us
Purchase consultation hotline: 18120742318
Email: [email protected]
BENTLY NEVADA 3500/62过程变量监测器
3500/62过程变量监测器是一个6通道监测器，用于连续监测加工机床的关键参数，如压力、流量、温度和液位。监测器接受+4至+20 mA的电流输入或10 Vdc至+10 Vdc之间的任何比例电压输入。它调节这些信号，并将条件信号与用户可编程的报警设置进行比较。
3500/62监视器：
1） 持续将监测参数与配置的报警设置进行比较，以驱动报警机械保护。
2） 为操作和维护人员提供必要的机器信息。
您可以使用3500机架配置软件对3500/62进行编程，以执行电流或电压测量。3500/62为三种信号输入场景提供I/O模块：+/-10V DC、隔离4-20mA或420mA，带本质安全整流屏障。内部屏障/O提供外部通道
电源输入端子为4-20mA传感器提供固有安全电源。
当用于三模冗余（TMR）配置时，过程变量监测器必须以三个相邻的一组安装。在这种配置中使用时，监视器采用两种投票方式，以确保准确操作，避免因单点故障而失去机械保护。
其他型号：3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
