Brand:BENTLY NEVADA
Model: 3500/60
Status: New/Used
Bently Nevada 3500/60 is a temperature monitoring module designed specifically for industrial environments, primarily used for real-time monitoring of the temperature status of industrial equipment. By analyzing temperature data, it is possible to determine whether there is an abnormal situation in the equipment and issue an alarm before the abnormality occurs, thereby ensuring the safe operation of the equipment and reducing downtime caused by equipment failures. Power supply voltage: 24V DC. Input signal: Accept RTD (resistance temperature detector) and TC (thermocouple) signals. Working temperature range: -40 ° C to+85 ° C. Shell protection level: IP67.

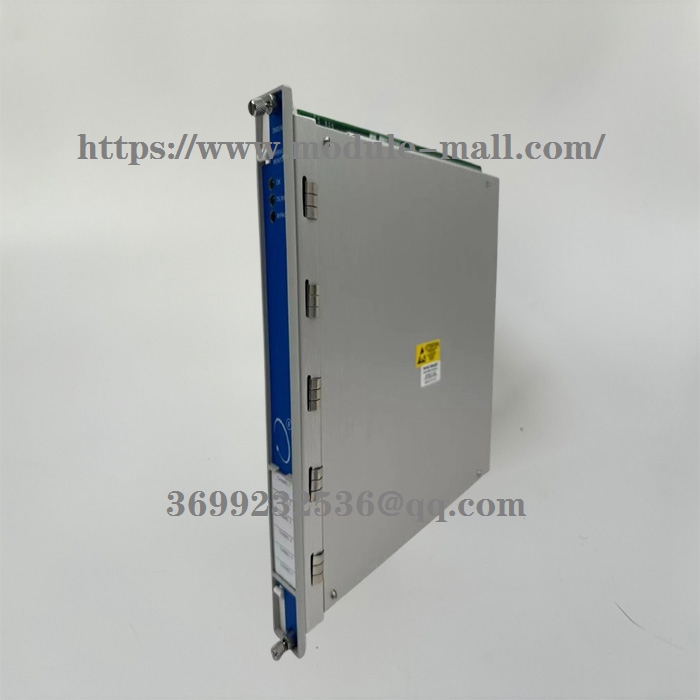

BENTLY NEVADA 3500/60
BENTLY NEVADA 3500/60 Temperature Modules
The 3500/60 & 61 modules provide six channels oftemperature monitoring and accept both ResistanceTemperature Detector (RTD) and Thermocouple (TC)temperature inputs. The modules condition these inputs andcompare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionalityexcept that the 3500/61 provides recorder outputs for each ofits six channels while the 3500/60 does not.The user programs the modules to perform either RTD or TCtemperature measurements using the 3500 RackConfiguration Software. Different I/O modules are available inRTD/TC non-isolated or TC isolated versions. The user canconfigure the RTD/TC non-isolated version to accept either TCor RTD, or a mixture of TC and RTD inputs. The TC isolatedversion provides 250 Vdc of channel-to-channel isolation toprotect against external interference.When used in a Triple Modular Redundant (TMR)configuration, temperature monitors must be installedadjacent to each other in groups of three. When used in thisconfiguration, the system employs two types of voting toensure accurate operation and to avoid single-point failures.
Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
Many products have not been launched yet. If you need more products, please contact us
Purchase consultation hotline: 18120742318
BENTLY NEVADA 3500/60温度模块
3500/60和61模块提供六个温度监测通道，并接受电阻式温度检测器（RTD）和热电偶（TC）温度输入。这些模块调节这些输入，并将其与用户可编程的报警设定点进行比较。3500/60和3500/61提供相同的功能，除了3500/61为其六个通道中的每一个提供记录器输出，而3500/60则没有。用户使用3500机架配置软件对模块进行编程，以执行RTD或TC温度测量。RTD/TC非隔离或TC隔离版本提供不同的I/O模块。用户可以配置RTD/TC非隔离版本，以接受TC或RTD，或TC和RTD输入的混合。TC隔离版本提供250 Vdc的通道间隔离，以防止外部干扰。当在三模冗余（TMR）配置中使用时，温度监测器必须以三个为一组彼此相邻安装。在这种配置中使用时，该系统采用两种投票方式，以确保准确操作并避免单点故障。
其他型号： 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
购买咨询热线:18120742318
QQ:3699232536
