BENTLY NEVADA 3500/46M

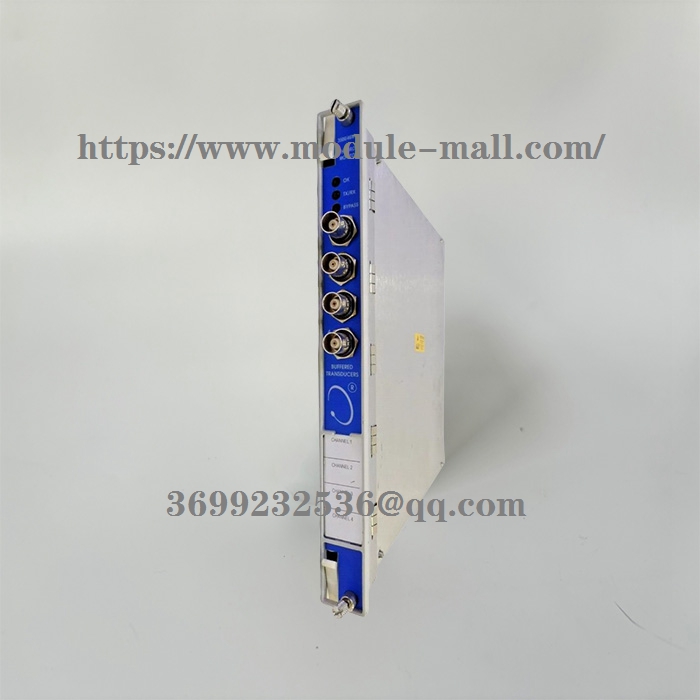

BENTLY NEVADA   3500/46M   Hydro Monitor

The 3500/46M Hydro Monitor is a four-channel instrumentthat accepts input from proximity, seismic, dynamic pressureand air gap sensors. The monitor conditions the signal toprovide vibration, position and both static and dynamicpressure measurements. It then compares the conditionedsignals with user-programmable alarms. Hydro RadialVibration channels combine the shaft gap movement withthe NX amplitude to provide a measurement to alarm onshear-pin failure.

Using the 3500 Rack Configuration Software, you canconfigure the 3500/46M Hydro Monitor to perform thefollowing functions:

Hydro Radial Vibration

Hydro Air Gap

Hydro Velocity

Hydro Acceleration

Hydro Thrust

Multimode Hydro RV

Multimode Air Gap

Multimode Hydro Velocity

Multimode Thrust

Multimode Acceleration

Multimode Hydro Dynamic Pressure

Hydro Stator End Winding (SEW)

The monitor channels are programmed in pairs.Each channel may have separate or identicalconfigurations.

The primary purpose of the 3500/46M HydroMonitor is to provide the following:

1.Machinery protection by continuouslycomparing monitored parametersagainst configured alarm setpoints todrive alarms

2.Essential machine information for operations and maintenance personne

Hydro Velocity channels provide earlywarning of pending machineryproblems and assist in diagnosingthem. Due to the nature of highamplitude, low frequency velocityevents, the Hydro Velocity channeltype cannot be used for automatedmachinery protection.Each channel, depending on configuration,typically conditions its input signal to generatevarious parameters called static values. Youcan configure alert setpoints for each activestatic value and danger setpoints for any twoof the active static values.You can configure multimode channels to haveup to eight sets of alarm parameters includingalert and danger set points and alarm timedelays. Each set may be configured for aspecific machine mode.As the machine changes modes, the monitorcan switch to a specific set using contacts onmultimode I/O modules or softwarecommands through a communicationsgateway.

Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……

Many products have not been launched yet. If you need more products, please contact us

Purchase consultation hotline: 18120742318

Email: [email protected]

BENTLY NEVADA 3500/46M水力监测仪
3500/46M水力监测仪是一种四通道仪器，可接受来自接近、地震、动态压力和气隙传感器的输入。监测器调节信号以提供振动、位置以及静态和动态压力测量值。然后，它将有条件的信号与用户可编程的警报进行比较。Hydro Radial Vibration通道将轴间隙运动与NX振幅相结合，以提供测量值，从而在细针故障时发出警报。
使用3500机架配置软件，您可以配置3500/46M水力监测器以执行以下功能：
水力径向振动
水力气隙
水力速度
水力加速
水力推力
多模式液压房车
多模气隙
多模式水力速度
多模推力
多模式加速
多模式液压动压
水轮发电机端部绕组（SEW）
监视器通道成对编程。每个通道可能具有单独或相同的配置。

3500/46M水力监测仪的主要目的是提供以下功能：
1.通过连续比较监测参数与配置的报警设定点来驱动报警，从而实现机械保护
2.操作和维护人员的基本机器信息
Hydro Velocity通道提供未决机器问题的早期预警，并协助诊断这些问题。由于高振幅、低频速度事件的性质，水力速度通道类型不能用于自动机械保护。根据配置，每个通道通常会调节其输入信号，以生成各种称为静态值的参数。您可以为每个活动静态值配置警报设定点，并为任意两个活动静态值设置危险设定点。您可以配置多模信道，使其具有多达八组报警参数，包括报警和危险设定点以及报警时间延迟。每组都可以针对特定的机器模式进行配置。当机器改变模式时，监视器可以通过通信网关使用多模式I/O模块上的触点或软件命令切换到特定设置。

其他型号：3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……
