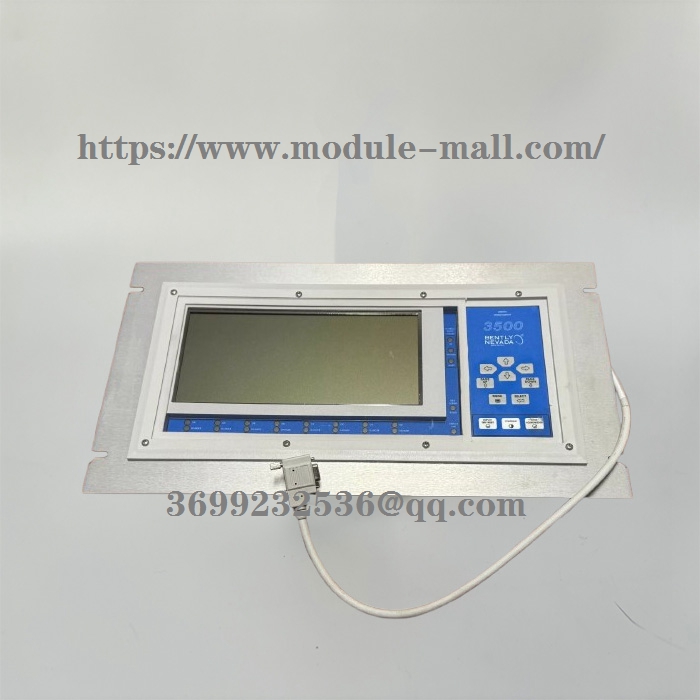

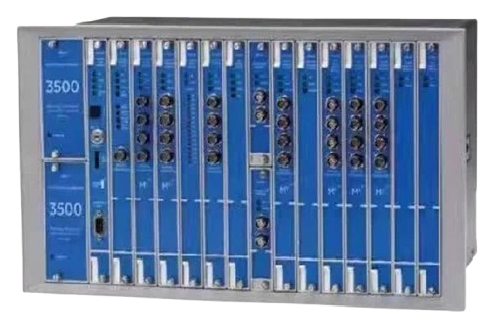

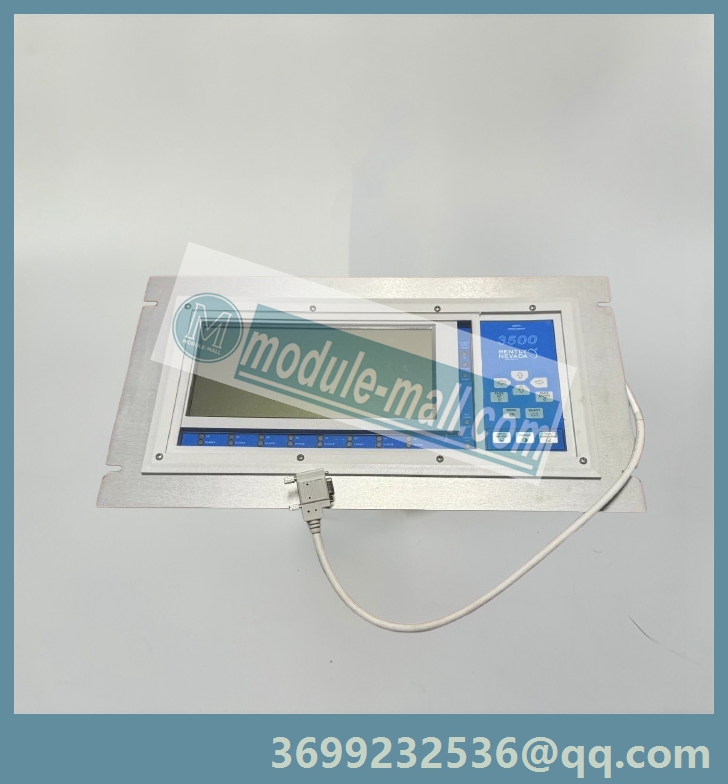

BENTLY NEVADA 3500/93-01-00-00 System Display

BENTLY NEVADA   3500/93   System Display

The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute (API) Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:

 System Event List

 Alarm Event Lists

 All Channel, Monitor, Relay Module, Keyphasor* Module or Tachometer Module data

The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:

1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and user-interface buttons and switches without disconnecting or disabling the display.

    Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.

2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM and the Display can be made from the front of the 3500 rack or from the I/O module at the rear of the rack.

Applications that require a cable longer than 100 feet must use the External Power Supply and Cable Adapter. Applications that use the back lighted Display Unit must use the External Power Supply. There are two External Power Supplies: one for connection to 115 Vac and the other for connection to 230 Vac.

The External Power/Terminal Strip Mounting Kit eases installation of External Power Supplies. The External Power/Terminal Strip Mounting Kit is designed to fit in the Independent Mount Housing. The Kit streamlines installation of an External Power Supply in both the Independent Mount Housing or a user supplied housing.

Other models: 3500/05 , 3500/15 , 3500/20 , 3500/22 , 3500/22M , 3500/25 , 3500/32 , 3500/32M , 3500/33 , 3500/34 , 3500/40 , 3500/40M , 3500/42 , 3500/42M , 3500/44M , 3500/45 , 3500/46M , 3500/50 , 3500/53 , 3500/60 , 3500/61 , 3500/62 , 3600/63 ， 3500/64M , 3500/70M , 3500/72M , 3500/77M , 3500/90 , 3500/92 , 3500/93 , 3500/93 System Display , 3500/94 , 3500/95……

Many products have not been launched yet. If you need more products, please contact us

Purchase consultation hotline: 18120742318

Email: [email protected]

BENTLY NEVADA 3500/93系统显示器
3500/93系统显示器的设计符合美国石油学会（API）标准670的要求，并提供机架中所有3500机械保护系统信息的本地或远程视觉指示，包括：
 系统事件列表
 报警事件列表
 所有通道、监测器、继电器模块、键相器*模块或转速计模块数据
3500/93系统显示器使用3500机架配置软件进行配置。显示器可以通过以下四种方式安装：
1.表面安装-显示器使用特殊的铰链支架直接安装在任何全尺寸3500机架的前面板上。这允许在不断开或禁用显示器的情况下访问机架的缓冲输出连接器和用户界面按钮和开关。
注意：仅对于此安装选项，显示接口模块（DIM）必须安装在机架的插槽15（最右侧的插槽）中。面部安装选项与3500 Mini机架不兼容。
2.19英寸EIA机架安装——显示器安装在19英寸EIA轨道上，距离3500系统100英尺。（使用外部电源时，距离3500系统4000英尺以内）。
3.面板安装-显示器安装在同一机柜中的面板切口中，或距离3500系统100英尺以内。（使用外部电源时，距离3500系统4000英尺以内）。
4.独立安装-显示器紧贴墙壁或面板安装，距离3500系统100英尺。（使用外部电源时，距离3500系统4000英尺以内）。

每个3500机架最多可以连接两个显示器，每个显示器需要一个空的3500机架插槽来插入其相应的DIM。当显示器不是正面安装时，DIM和显示器之间的电缆连接可以从3500机架的前部或机架后部的I/O模块进行。
需要长度超过100英尺的电缆的应用程序必须使用外部电源和电缆适配器。使用背光显示单元的应用程序必须使用外部电源。有两个外部电源：一个用于连接到115 Vac，另一个连接到230 Vac。
外部电源/端子板安装套件简化了外部电源的安装。外部电源/端子板安装套件设计用于安装在独立安装外壳中。该套件简化了外部电源在独立安装外壳或用户提供的外壳中的安装。
