ABB 1VCF751021802

Feedline protection and measurement unit REF542plus (IEC)
Introduction: The REF542plus feeder protection and measurement and control unit integrates functions such as protection, control, measurement, communication, and monitoring. The same unit can be used for feeder protection, transformer protection, motor protection and control, and can also be used separately as a control device.
All these functions are implemented through a programmable environment. This flexibility and scalability enable REF542plus to implement almost all quadratic schemes, even those that traditional methods cannot achieve.

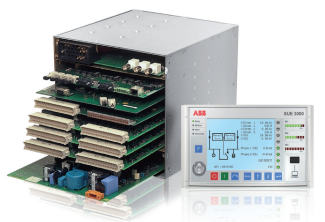

Whether equipped with a backend system or not, REF542plus is an excellent solution for digital control and protection of medium voltage switchgear. The product consists of a separate host and human-machine interface (HMI), connected by shielded twisted pair cables.

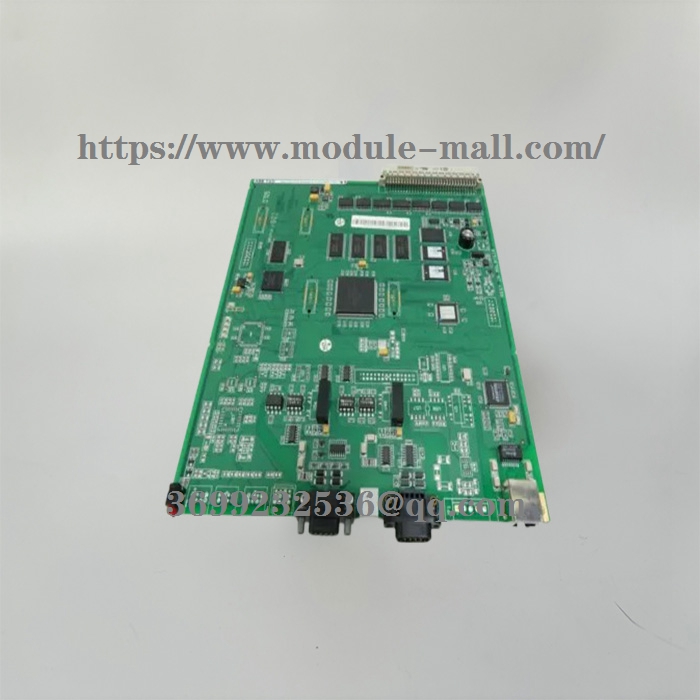

The host includes a power board, motherboard, analog and switch input and output, as well as other expansion function cards. HMI has a separate power supply. It can be installed on the low-voltage room door panel or in other locations near the main unit, providing great spatial flexibility for the installation of the device inside the switchgear.
The characteristics of REF542plus are summarized as follows:
 ● Specially optimized design for air or gas insulated medium voltage switchgear
 ● Up to 24 protection function configurations can be implemented through software
 ● Graphic human-machine interface, supporting Chinese language
 ● Separation design of host unit and operation panel
 ● Supports multiple communication protocols, including IEC61850
 ● Multiple certification qualifications and years of application performance both domestically and internationally
 ● Seamless integration with ABB's other distribution automation products, as well as third-party substation automation systems
Control:
1. Switching between operating, testing, and setting states
2. Switching between local and remote states
3. Closing and opening operations
4. Emergency disconnection
5. Various interlocking functions are set up in the software
Measurement:
1. Three phase current, zero sequence current, high demand for three-phase current
2. Three phase/line voltage, zero sequence voltage
3. Active/reactive power
4. Active/reactive electricity
5. Power factor
6. Frequency
7. Switching operation time, number of operations
Protection:
1. Current protection, grounding protection
2. Differential protection
3. Voltage protection
4. Motor protection
5. Power direction protection
6. Distance protection
7. Automatic reclosing
8. Frequency monitoring
9. Check the same period
10. Fault recording, etc
Signal:
1. Simulation display main circuit scheme for LCD screen
2. LED indicator light (three color setting)
3. Three more input/output (I/O) cards
4. Each I/O card has 14 inputs and 9 output signals
5. LED Bar Chart

signal communication:

1. Front panel RS232 port, used for setting and configuring REF542+

2. Communication between REF542+and backend host
 ● SPABUS fiber optic interface
 ●  MODBUS RS485 interface or fiber optic interface
 ●  IEC60870-5-103 fiber optic interface
 ●  LON fiber optic interface
Advantages:
1. Unified hardware configuration makes intelligent switchgear a reality, standardized wiring, simpler production management, single spare parts, and more convenient on-site management and operation maintenance
2. Flexible software development simplifies engineering design, shortens the design cycle, improves the efficiency of on-site debugging, and makes it possible to change the functions of switchgear and even the nature of loads in the future

3. Powerful communication function, fiber optic connection, simple wiring, strong anti-interference ability, high reliability, real-time information processing, complete system management, open communication protocol, easy networking.
