GE IC695CMM004

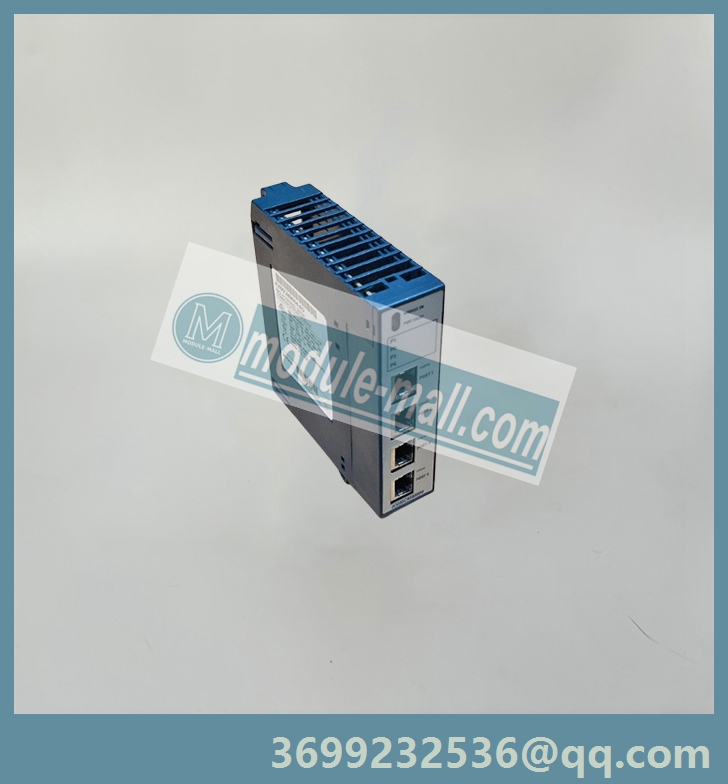

The IC695CMM004 is a serial communication module from the PACsystem RX3i product series, manufactured by Emerson Automation (formerly GE). It provides four (4) independently operated and isolated serial ports using RJ45 connectors.
The GE Fanuc IC695CMM004 module is a 4-port communication module. It features four independent serial ports, each equipped with a standard female RJ-45 connector and corresponding status LEDs. If the serial ports are configured for Modbus applications, custom cables will be required as the pin assignments for Modbus applications differ from the standard ones. Additionally, the IC695CMM004 module boasts two status LEDs: a port fault LED and a module normal LED. The IC695CMM004 module can be upgraded to firmware version 1.34 using the GE Fanuc 44A753278-G06 upgrade kit. When installed in hazardous locations, the module should be shut down or the wiring disconnected before replacing it. Furthermore, equipment should not be connected or disconnected unless the power is turned off or the locations are known to be non-hazardous. Operating at 3.3 volts DC, the IC695CMM004 module draws a maximum current of 0.7 amps, while at 5 volts DC, it consumes a maximum of 0.150 amps. The serial ports on the module support both RS-232 and RS-422/485 configurations. The RS-422/485 configuration supports 4-wire full-duplex operation and 2-wire half-duplex operation. The supported baud rate range spans from 1200 baud to 115.2 kb. It supports even, odd, and no parity settings. The port-to-port isolation rating is 500 volts DC continuous and 710 volts DC for one minute. The input impedance range for RS-232 configuration is between 3 and 7 kOhms. The recommended ambient temperature range for the IC695CMM004 module is 0 to 60 degrees Celsius. The IC695CMM004 module complies with CE and UL/CUL 508 requirements.
