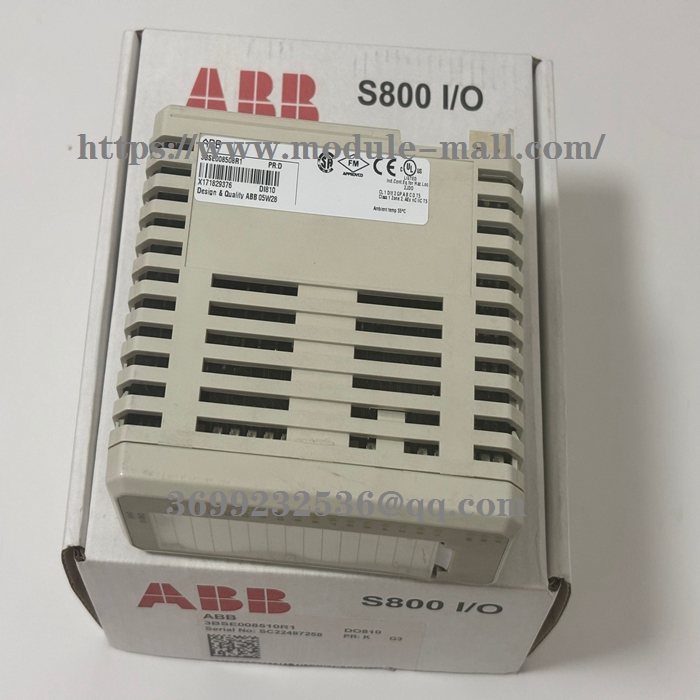

ABB DI810

ABB  DI810  digital output modules

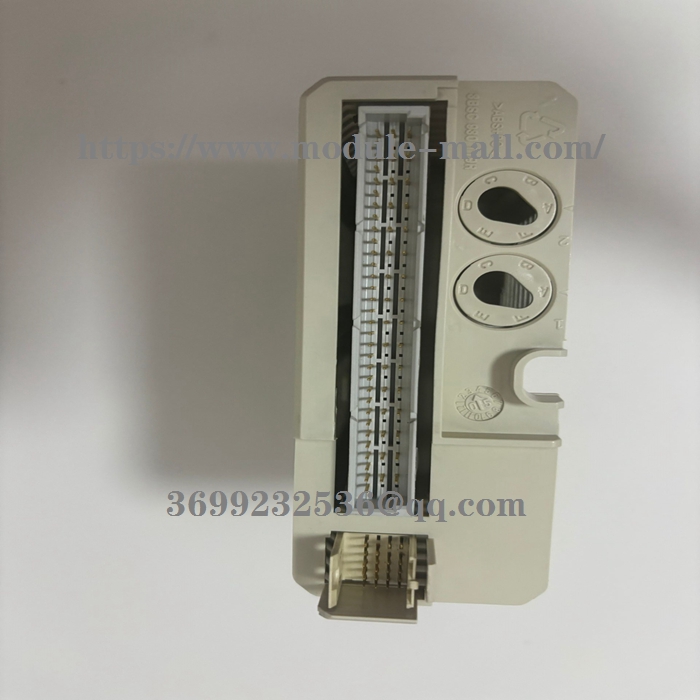

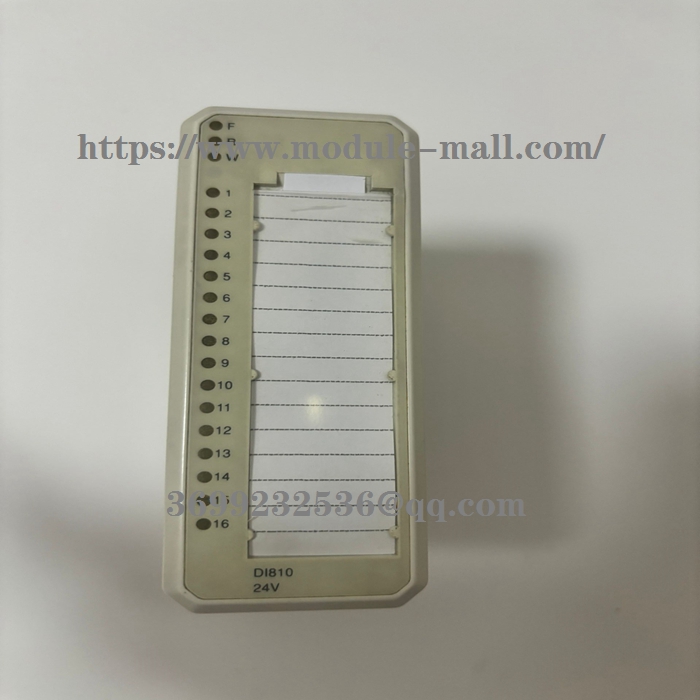

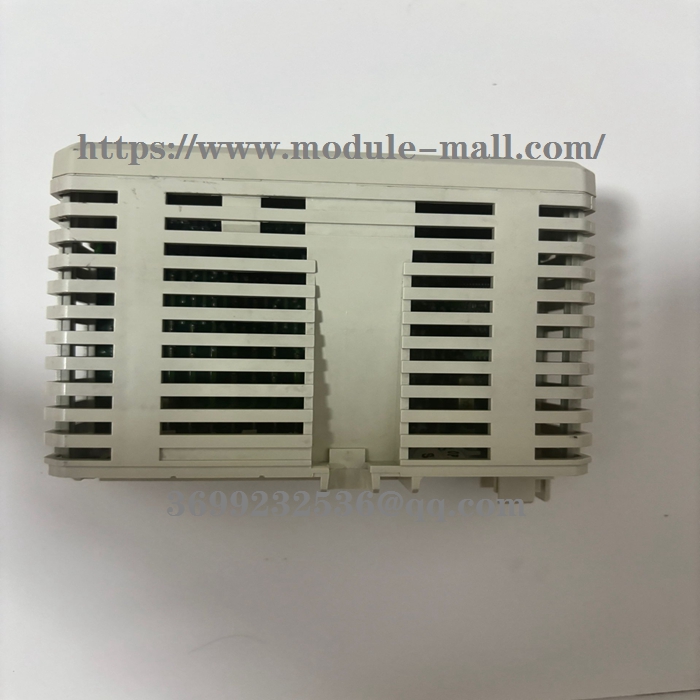

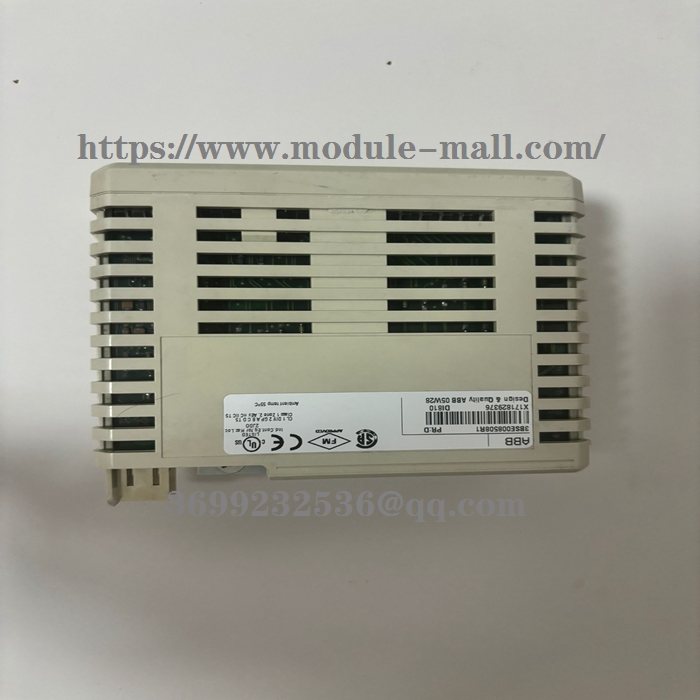

hardware features

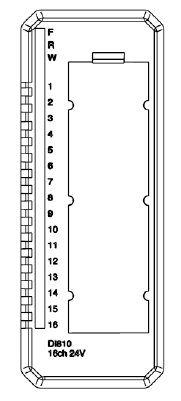

The outline drawing is as follows

hardware description
DI810 is a 16 channel 24V digital input module used for S800 I/O. This module has 16 numerical inputs. The input voltage range is 18
To 30 volts, the input current is 6ma at 24V. The input is divided into two independent groups, each channel and a voltage monitoring input. Each input channel has a current limiting component, EMC protection component, input status indicator LED, and optical isolation barrier. If voltage supervision is enabled, channels 1-8 and 9-16 will display channel errors if the process voltage fails for its channel group. The detection time for this supervision is 70 milliseconds. The input channel can perform digital filtering. The completion times for different filtering times are 2, 4, 8, and 16 milliseconds, respectively. This means that noise pulses are filtered out in a shorter time than the filter, and pulses exceeding 3, 6, 12, and 24 ms pass through the filter. Nine different types of MTUs can be used.
Eight different types of MTUs can be used. TU830/TU833 extends MTU to connect three wires to devices without the need for additional terminals.
The TU810 (or TU814) compact MTU has a terminal monitoring input for 24V process voltage, but requires external terminal allocation of 24V power supply equipment.
The compact TU818 MTU provides 2-wire connections for sensors without external grouping.
TU838 extends MTU by providing a fuse (3A maximum) for every two channels of process power.
The TU812 compact MTU has a D-Sub 25 pin (male) connector for connecting processes.
TU850 provides a detachable PTC fusion sensor/transmitter power outlet terminal for each channel.

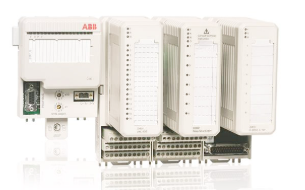

Introduction to S800 i/o
Because it can be installed on site and close to sensors and actuators, the S800 i/o system reduces the installation cost by reducing the expenditure of cables. And because of the following features, such as "hot plug" modules, "online" reset and redundancy options, they ensure production and make profits continue to grow.
