YORY SE-SPU1001-6

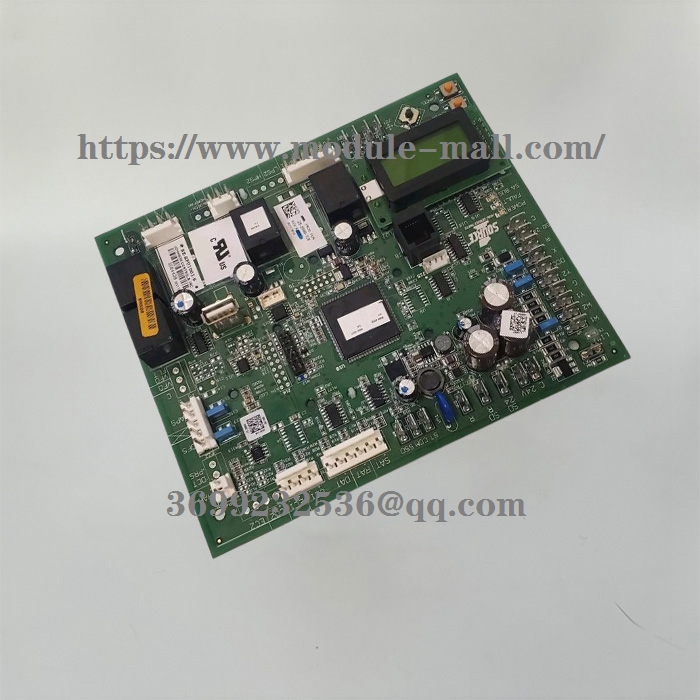

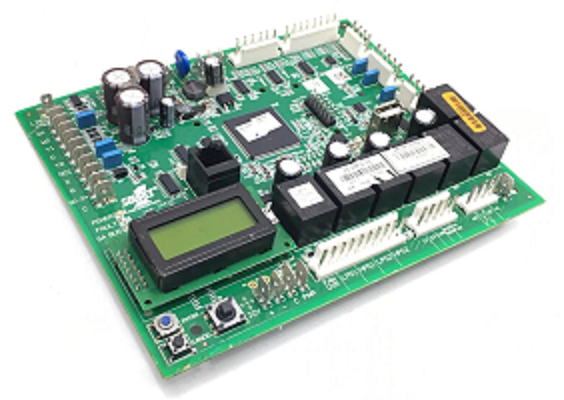

（Johnson  Controls） YORY   SE-SPU1001-6   SE-SPU Series Unit Control Boards (UCBs)

Description

The SE-SPU Series Unit Control Boards (UCBs) provide multiple options for equipment, such as several inputs and outputs that provide thermostat interface and control of heating and cooling stages. All safety circuits are wired to the UCB for equipment protection. The UCB design and core asset foundation are based on the Metasys® system Field Equipment Controller (FEC) platform. The local display on the UCB is the main UI that lets you configure, self test, view information, and control the equipment. Smart Equipment Controls (SEC) are fully compatible with Metasys® software Release 6.5 or higher and its associated components.

The UCB offers a new USB drive feature that provides valuable access to history and trends that you can later view on any computer. The USB also lets you upgrade the software to the UCB and all the other connected controllers on the Sensor Actuator (SA) bus. One simple command through the UCB display invokes a software upgrade to all control boards. Refer to the Smart Equipment Controls (SEC) Product Bulletin (LIT-12011934) for important product application information.

Features

• thermostat input

• safety control

• Direct Digital Control (DDC) controller

• local LCD

• all control output for cooling and heating

• all input for sensors (space, return air, outside air, supply air, and smoke)

• pluggable communication card for standard protocols, including BACnet®, MS/TP, MODBUS®, and N2

• super application to meet all application requirements

• factory installed for Johnson Controls® Series 5, Series 10, Series 20, Series 40, and single packaged units

• BACnet Testing Laboratories™ (BTL) certified

Other models：SE-SPU1001-1，SE-SPU1001-4，SE-SPU1001-6，SE-SPU1001-7，SE-SPU1001-8，SE-SPU1002-0，SE-SPU1002-3，SE-SPU1002-7，SE-SPU1002-8，SE-SPU1004-8，SE-SPU1011-7，SE-SPU1012-4，SE-SPU1012-6
