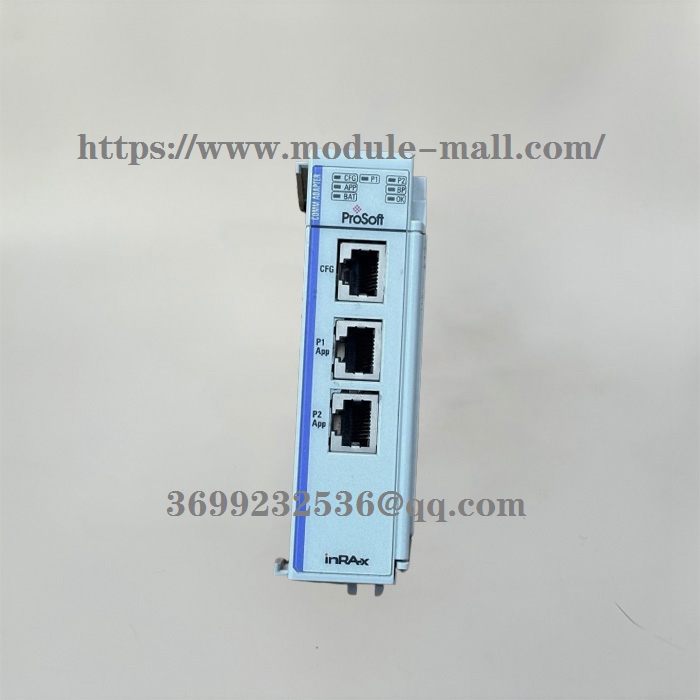

PROSOFT MVI69-MCM

Using MVI69 Modbus Master/Slave Network Interface Module, Rockwell Automation ®  CompactLogix ™  Programmable Automation Controller (PAC) and MicroLogix ™  The 1769-LRP programmable logic controller (PLC) can be connected to Modbus compatible devices. Compatible devices not only include Modicon ®  PLC， It also includes third-party devices that cover almost all industries and have a wide variety of types.

General specifications
Single slot, compatible with 1769 backplane
The module is recognized as an input/output module, which can access the processor storage area to transfer data between the processor and the module
Use ladder logic to transfer data between modules and processors. Attached is a sample file of ladder diagram.
Retrieve configuration data from the configuration text file downloaded to the module. Attached is a configuration sample file.
Supports CompactLogix processors with 1769 I/O bus functionality, capable of providing at least 800 mA (5 VDC) backplane current.
Also supports MicroLogix 1500 LRP
