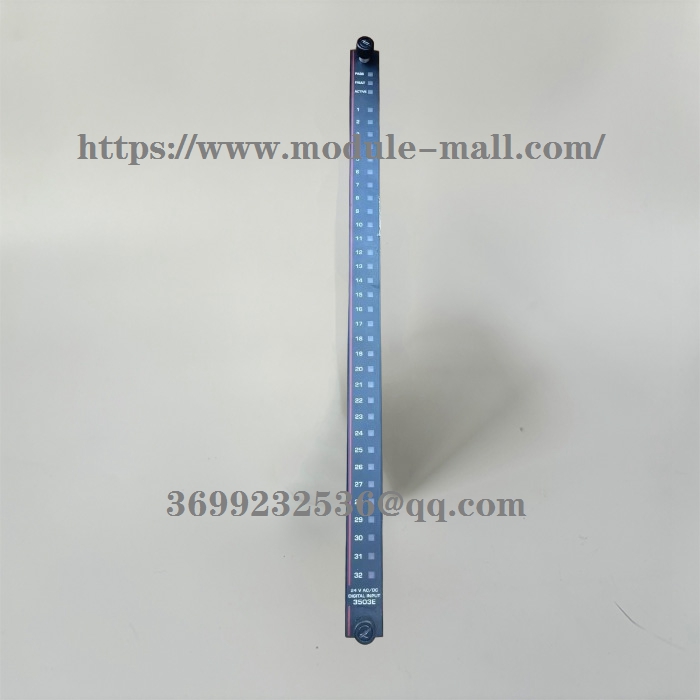

TRICONEX 3503E

Brand:TRICONEX

Model: 3503E

Status: New/Used

TRICONEX 3503E is a high-performance control module designed specifically for industrial automation and process control, widely used for monitoring, control, and safety assurance in harsh industrial environments. As the core component of the TRICONEX series, this product integrates advanced digital input processing technology, redundant architecture, and intelligent diagnostic functions to provide users with stable and reliable industrial control solutions. The TRICONEX 3503E module is designed specifically for processing digital signals in complex industrial scenarios, suitable for safety critical systems such as emergency stop systems, safety interlock control, etc.

[email protected]

TRICONEX 3503E

The TriconeX 3503E is a digital input (DI) module for the Tricon safety system, a subsidiary of Schneider Electric.
TRICONEX 3503E is a high-performance control module designed specifically for industrial automation and process control, widely used for monitoring, control, and safety assurance in harsh industrial environments. As the core component of the TRICONEX series, this product integrates advanced digital input processing technology, redundant architecture, and intelligent diagnostic functions to provide users with stable and reliable industrial control solutions. The TRICONEX 3503E module is designed specifically for processing digital signals in complex industrial scenarios, suitable for safety critical systems such as emergency stop systems, safety interlock control, etc.
TRICONEX 3503E is designed for industrial control applications with high reliability and safety, such as key process control in petrochemicals, natural gas, nuclear power, etc. It can collect on-site switch signals (such as emergency stop button, liquid level switch, pressure switch, etc.), support triple module redundancy (TMR), and ensure high reliability. The input type of this module is 24VDC digital input (dry contact/wet contact optional), with 16/32 channels (depending on the version). The input voltage range is 0-30VDC (compatible with 24V industrial standard), using optoelectronic isolation (channel to channel and system side isolation), and the response time is ≤ 10ms (configurable filtering time). It also has a Fail Safe feature, where any single point of failure will not cause the system to malfunction.
Main Features
Triple Redundancy (TMR): 3 independent input channels, improved security through a voting mechanism.
Fail Safe: Any single point of failure will not cause system malfunction.
Hot Swap online replacement supports live plugging and easy maintenance.
Diagnostic function: It can detect wire breakage, short circuit, channel faults, etc.
Wiring and installation
Input signal type:
1. Dry contact (passive): directly connect switch and relay contacts.
2. Wet contact (active): requires an external 24V power supply (such as proximity switches, sensors)
Typical wiring:
1. Single ended input: The common terminal (COM) is connected to 0V, and the signal terminal is connected to+24V or a switch.

2. Differential input (supported by some models): improves anti-interference ability.

Many products have not been launched yet. If you need more products, please contact us

Purchase consultation hotline: 18120742318

QQ：3699232536

Email: [email protected]

TRICONEX 3503E是康吉森（Triconex，现属于施耐德电气旗下）Tricon安全系统的数字量输入（DI）模块。

TRICONEX 3503E是一款专为工业自动化与过程控制设计的高性能控制模块，广泛应用于严苛工业环境中的监测、控制与安全保障。作为TRICONEX系列的核心组件，该产品融合了先进的数字输入处理技术、冗余架构与智能化诊断功能，为用户提供稳定、可靠的工业控制解决方案。 TRICONEX 3503E模块专为处理复杂工业场景中的数字信号而设计，适用于安全关键型系统（如紧急停车系统、安全联锁控制等）。

TRICONEX 3503E专用于高可靠性、高安全性的工业控制场合，如石油化工、天然气、核电等关键过程控制。它能够采集现场开关量信号（如急停按钮、液位开关、压力开关等），支持三重模块冗余（TMR），确保高可靠性。该模块的输入类型为24VDC数字量输入（干接点/湿接点可选），通道数量有16/32通道（具体取决于版本），输入电压范围为0-30VDC（兼容24V工业标准），采用光电隔离（通道间及系统侧隔离），响应时间≤10ms（可配置滤波时间）。它还具备故障安全（Fail-Safe）特性，任何单点故障不会导致系统误动作。

主要特点

三重冗余(TMR):3路独立输入通道，通过表决机制提高安全性。

故障安全(Fail-Safe):任何单点故障不会导致系统误动作。

在线更换(Hot Swap)支持带电插拔，维护方便。

诊断功能:可检测断线、短路、通道故障等。

接线与安装

输入信号类型:

1.干接点(无源):直接连接开关、继电器触点。

2.湿接点(有源):需外部24V电源(如接近开关、传感器)

典型接线:

1.单端输入:公共端(COM)接0V，信号端接+24V或开关。

2.差分输入(部分型号支持):提高抗干扰能力。
