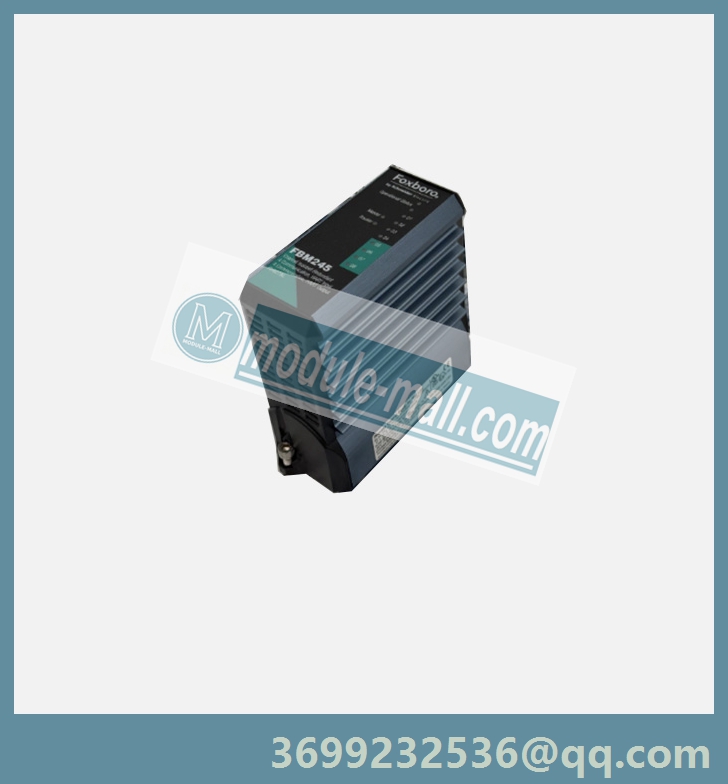

FOXBORO FBM245

A redundant pair of FBM245 modules perform the signal conversion required to interface electrical input/output signals from field sensors and actuators to the redundant module Fieldbus. Each module contains four 0 to 20 mA galvanically isolated analog input and output channels (eight total). They support any mix of standard 4 to 20 mA devices and HART devices up to the limits of loop resistance, as shown in Figure 1. Each input channel accepts an analog sensor input such as a 4 to 20 mA transmitter or a self-powered 20 mA source. Each output channel drives an external load and produces a 0 to 20 mA output. A redundant analog input block and redundant analog output block in the Foxboro™ DCS Control Software validates each input and output in conjunction with information to or from the module. When a failure is detected in an FBM245, its output is driven to 0 mA, and the corresponding channel in the good module automatically continues supplying the proper current to the output current loop.

Features

 • Four 0 to 20 mA analog input channels, used for a HARTanalog sensor input

 • Four analog output channels, used to drive an external load and produce a 0 to 20 mA output

 • Support for the HART universal commands necessary to interface the field device with Foxboro DCS. All channels are galvanically isolated.

 • Rugged design suitable for enclosure in harsh environments (Class G3) per ISA Standard S71.04.

 • Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM245

 • Channels may be powered from sources internal to Foxboro DCS or from external sources
