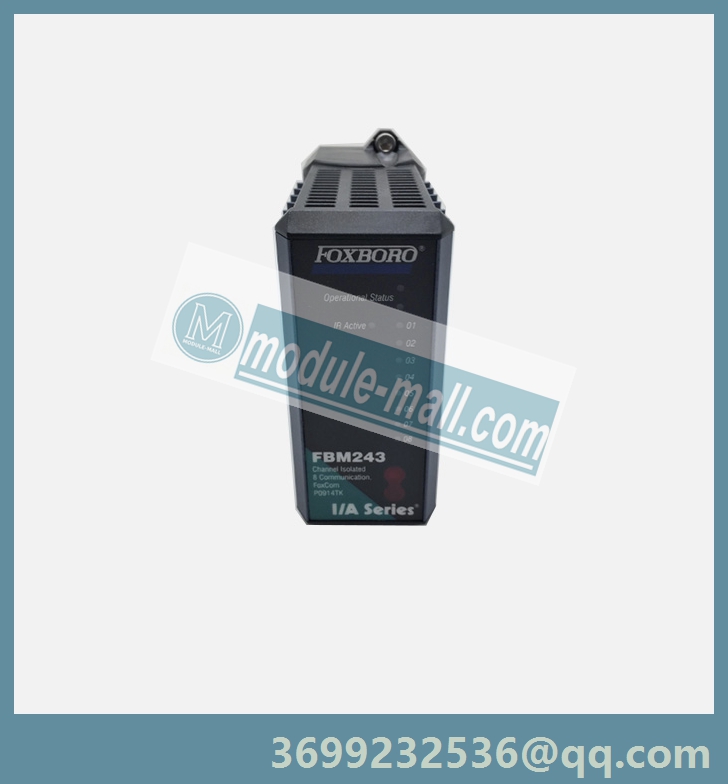

FOXBORO FBM243

The FBM243, FoxCom Dual Baud Rate, Intelligent Device Module contains eight individual channels. The FBM243b, FoxCom Dual Baud Rate, Intelligent Device Module contains four individual input channels and four 0 to 20 mA analog output channels.

Each input provides internal isolated power and digital communication capabilities to a Foxboro Intelligent Field Device. Each channel communicates over a single twisted pair of wires and each channel of the FBM243/243b is channel isolated. The modules also allow the use of an external power supply to power the Intelligent Field Device. (The use of an external power supply common to two or more loops needs the use of a cable balun module to maintain digital communication line balance). The baud rate is determined by the configuration of the field device connected to each channel, independently of the other channels. The modules provide bidirectional digital communication at 4800 baud rate between the Intelligent Field Device and the system redundant Fieldbus, or provides bidirectional digital communication at 600 baud rate between the field device and the modules while allowing a simultaneous 4 to 20 mA analog signal from the field device to an emergency shutdown system.

The FBM243/243b is an Intelligent Field Device host, enabling the system to receive digital messages from the field device in engineering units. Each message is received ten times per second at 4800 baud, and two times per second at 600 baud. Each message contains:

 • Up to three measured variables in IEEE 32-bit floating-point format

 • Security information

 • Diagnostics

 • Message checking

This information is available to each of the elements of the system.

Since communication is bidirectional, the system can display the output, transmitter temperature (°C and °F), and the results of continuous self-diagnostics. In addition, the following information can be displayed or reconfigured from a console, a Field Communicator, or PC-Based Configurator:

 • Output in engineering units

 • Fail-safe information • Tag number, name and location

 • Device name (letterbug)

 • Last calibration date

 • Two levels of upload/download capabilities

When connected to the appropriate TAs, the FBM243/243b modules provide functionality formerly provided by the 100 Series FBM I/O subsystem. TAs are available for the FBM243 that support the functionality of the 100 Series FBM18 and FBM43.
