FOXBORO P0916CC

Product Description and Specification

DeltaV Flex.Connect wiring solutions provide direct connection from Foxboro I/A Series 200 and Compact Series 200 I/O termination assemblies to DeltaV CHARM terminal blocks and M-or S-series traditional I/O cards. Foxboro I/A Series 200 I/Otermination assemblies have many different I/O types. Passive FBM termination assemblies have been selected for the DeltaV Flex.Connect solutions. These are cable only solutions with no signal conditioning requirements.

Analog Inputs

Eight Analog Inputs connect to eight DeltaV 4-20mA AI CHARMs – termination assembly model number FBM201 / P0916AA.

Eight *Thermocouple/mV Analog Inputs connect to eight DeltaV Thermocouple/mV CHARMs – termination assembly model number FBM202 / P0916AC.

Eight RTD Pt/Ni 2 or 3-wire Analog Inputs connect to eight DeltaV RTD CHARMs – termination assembly model number FBM203 / P0916AE.

Four Analog Inputs connect to four DeltaV 4-20mA AI CHARMs–termination assembly model numbers FBM204 / P0916AG and FBM205 / P0916AJ.

Sixteen Analog Inputs connect to sixteen DeltaV 4-20mA AI CHARMs – termination assembly model number FBM211 / P0916JT. (Externally powered, 4-wire setup)

Fourteen *Thermocouple/mV Analog Inputs connect to fourteen DeltaV Thermocouple/mV CHARMs – termination assembly model number FBM212 / P0916BV.

Analog Outputs

Four Analog Outputs connect to four DeltaV 4-20mA output CHARMs - termination assembly model numbers FBM204 / P0916AG and FBM205 / P0916AJ.

Eight Analog HART® Outputs connect to eight DeltaV 4-20mA output HART CHARMs – termination assembly model number FBM215 / P0917XV.

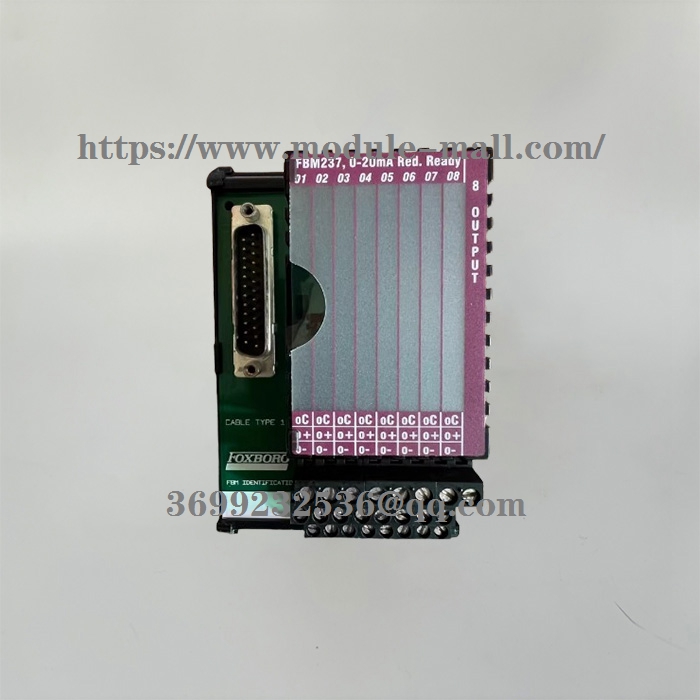

Eight Analog Outputs connect to eight DeltaV 4-20mA output CHARMs – termination assembly model number FBM237 / P0916CC.
