FOXBORO P0926HF

DIN Rail Mounted Modular Baseplates

FEATURES

Key features of the Modular Baseplates are:

 2, 4, and 8 module positions in combination with vertical and horizontal mounting

 Connection for optional GPS time strobe for FCP280, FCP270, and FCM100Et

 Connection to the 2 Mbps Module Fieldbus for the DIN rail mounted Fieldbus Modules, or to a 268 Kbps Fieldbus for the 100 Series FBMs

 Primary and secondary 24 V dc power and communications connections

 Field connection for I/O termination assemblies,redundant adapters and module identifiers for each module

 Splitters/terminators for time strobe and A/B Fieldbus

 DIP switch for identification of certain Modular Baseplates

 Backwards compatibility with existing DIN I/O subsystems allowing for future expansion without additional interface hardware

 Adding additional Modular Baseplates without removing the system from service (requires redundant bus)

 Keyed positions dedicated to FCP270 or FCM/FBM only

 Passive backplane to increase system reliability.

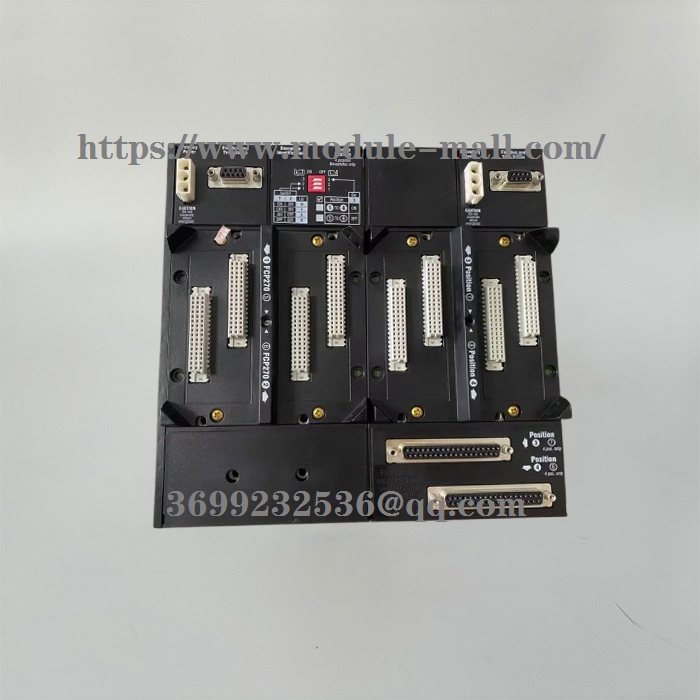

 2 FCP270 and 2 FBM 4-position, P0926HF
