FOXBORO P0973CN

Standard 200 Series Baseplates

The Standard 200 Series baseplates provide the mounting platform and communication backplane for DINrail mounted 200 Series modules.

OVERVIEW

These standard 200 Series baseplates support distributed control for both small and large systems and specifically support the following Foxboro Evo™ system modules:

 Field Control Processor 280 (FCP280) faulttolerant or non-fault-tolerant

 Field Device Controller 280 (FDC280) faulttolerant or non-fault-tolerant

 Field Control Processor 270 (FCP270) faulttolerant or non-fault-tolerant

 Field Communications Modules (FCM100Et and FCM100E) and other FCMs

 Fieldbus Expansion Modules (FEM100E) Fieldbus Isolator/Filter Modules (FBI200/FBI100)

 Standard Fieldbus Modules (FBMs) and 100 Series FBMs connection.

The standard FBM-supporting 200 Series baseplates enable overall system installation functionality by providing unit increments of 2, 4, and 8 FBM positions in combination with vertical and horizontal mounting.

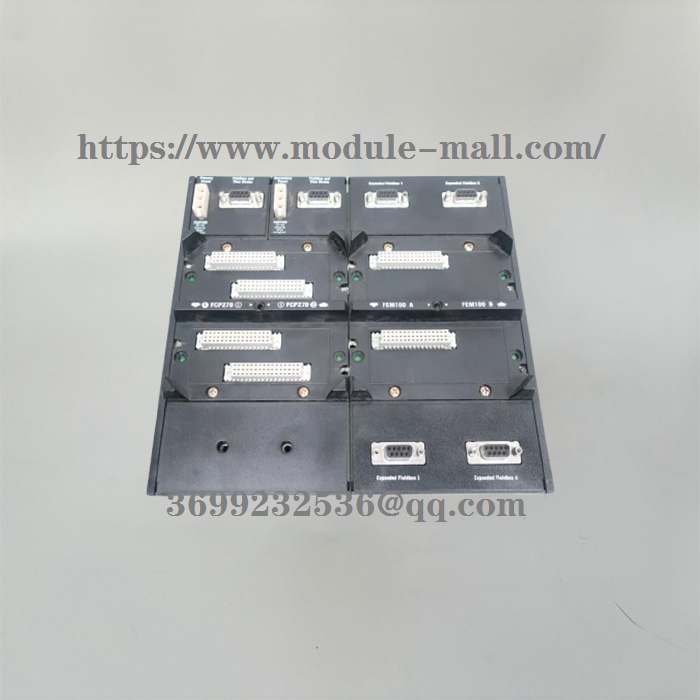

2 FCP270 and2 FEM100 4-position P0973CN
