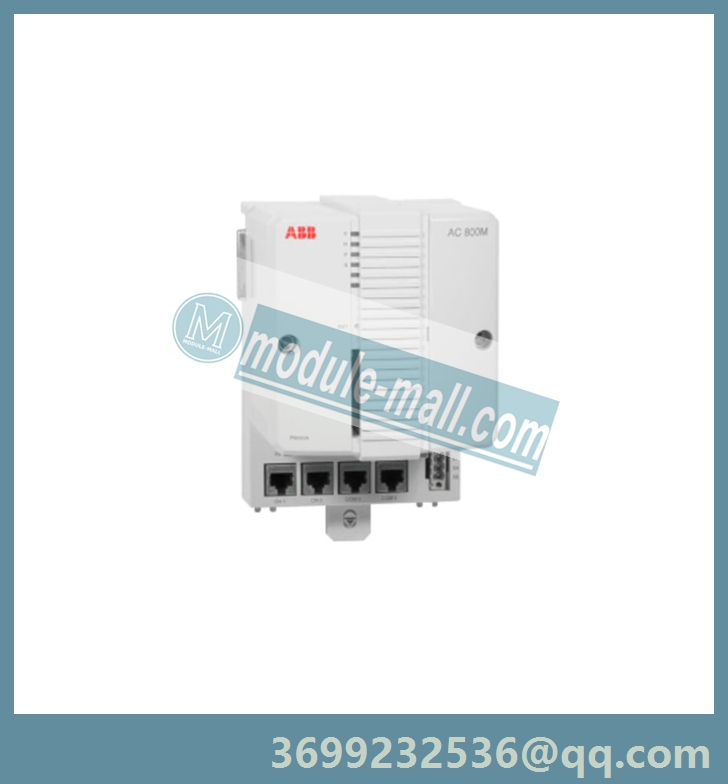

ABB PM860AK01 (3BSE066495R1)

Brand: ABB

Model: PM860AK01

Part No: 3BSE066495R1

Describe: AC 800M Controllers

Status: New/Used

ABB PM860AK01 3BSE066495R1 is a high-performance processor unit suitable for AC 800M/800xA distributed control systems

ABB PM860AK01 (3BSE066495R1)

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM860A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

Features and benefits

• Reliability and simple fault diagnosis procedures

• Modularity, allowing for step-by-step expansion

• IP20 Class protection without the requirement for enclosures

• The controller can be configured with 800xA control builder

• The controller has full EMC certification

• Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)

Many products have not been launched yet. If you need more products, please contact us

Purchase consultation hotline: 18120742318

QQ：3699232536

Email: [email protected]

CPU板包含微处理器和RAM存储器、实时时钟、LED指示灯、INIT按钮和CompactFlash接口。
PM860A控制器的基板有两个RJ45以太网端口（CN1、CN2）用于连接到控制网络，还有两个RJ45串行端口（COM3、COM4）。其中一个串行端口（COM3）是带有调制解调器控制信号的RS-232C端口，而另一个端口（COM4）是隔离的，用于连接配置工具。
使用独特的滑动和锁定机制，简单的DIN导轨连接/拆卸程序。所有基板都配备了一个唯一的以太网地址，为每个CPU提供了一个硬件标识。该地址可以在TP830基板上的以太网地址标签上找到。
特性和优势
• 可靠性和简单的故障诊断程序
• 模块化，允许逐步扩展
• IP20级防护，无需外壳
• 控制器可以配置800xA控制构建器
• 控制器具有完整的EMC认证
• 基于最佳通信连接标准的硬件（以太网、PROFIBUS DP等）

许多产品尚未推出。如果您需要更多产品，请联系我们
购买咨询热线:18120742318

QQ:3699232536

邮箱:[email protected]
