ABB GV C703 AE01 (3BHB003387R0101)

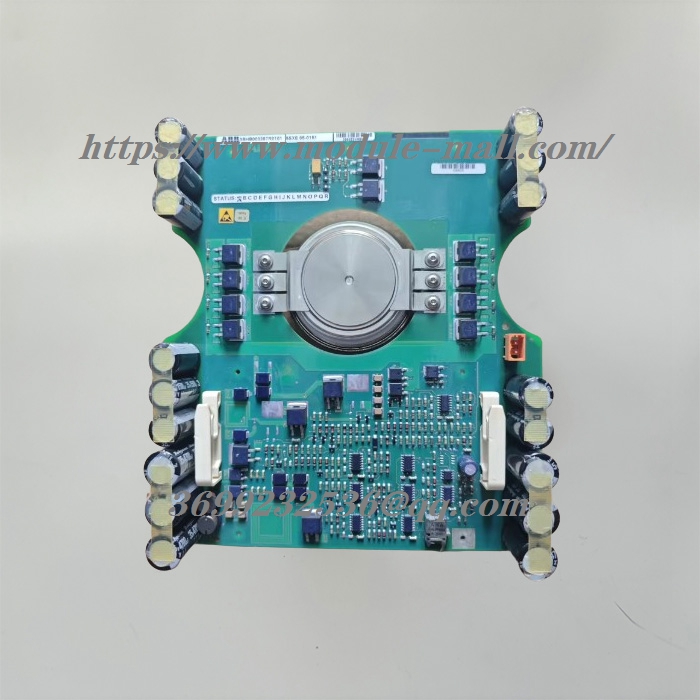

ABB    3BHB003387R0101   GV C703 AE01  （5SXE 05-0151）Gate driver board

GV C703 AE01 3BHB045647R0008 ABB has a more challenging loss source in determining the driving requirements of transistors. During the charging and discharging process of the gate capacitor, there is a transition period between the fully open and fully closed states of the switch, during which voltage appears on the switch and current flows through it. Due to the simultaneous presence of high voltage and high current, such switch losses can cause significant power consumption, sometimes reaching tens of watts, and further efficiency degradation. Therefore, it is beneficial to shorten the duration of the transition period by charging and discharging the gate capacitance faster.
If the output voltage of GV C703 AE01 3BHB045647R0008 ABB is even high enough to make the transistor conduct, then the low current signal provided by most microcontrollers will be extremely slow and inefficient when driving high-power transistors.
