ABB TU810V1

ABB  TU810/TU810V1

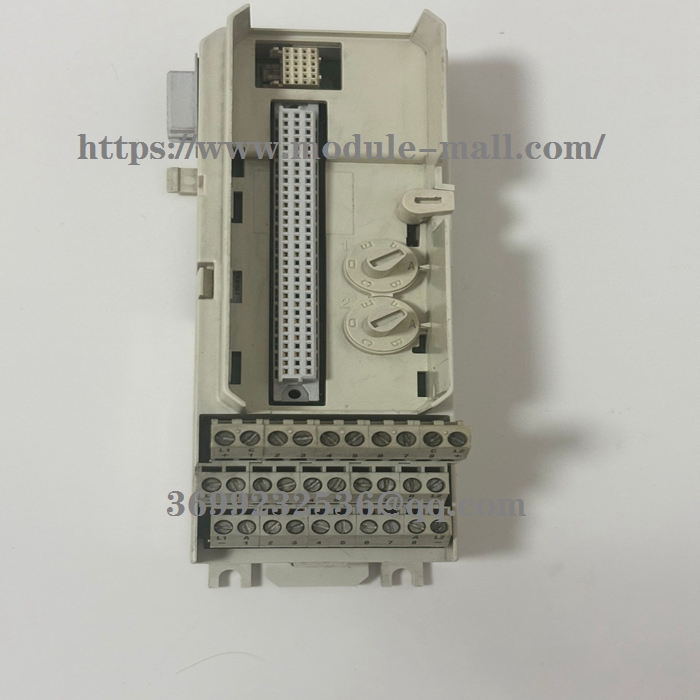

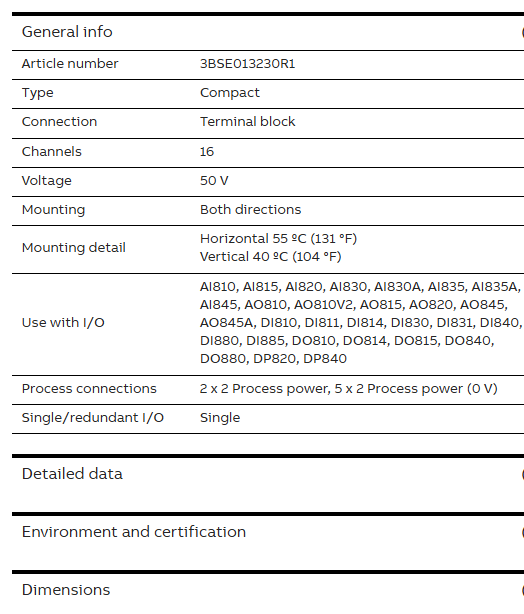

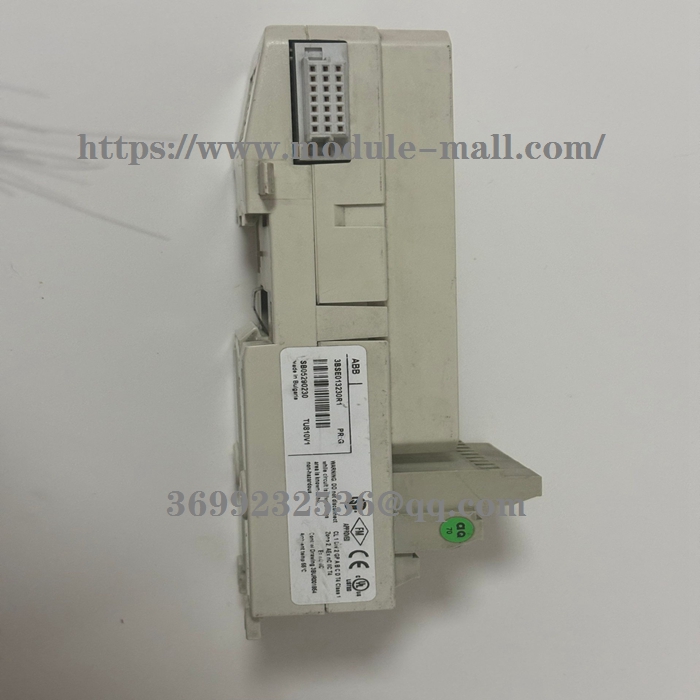

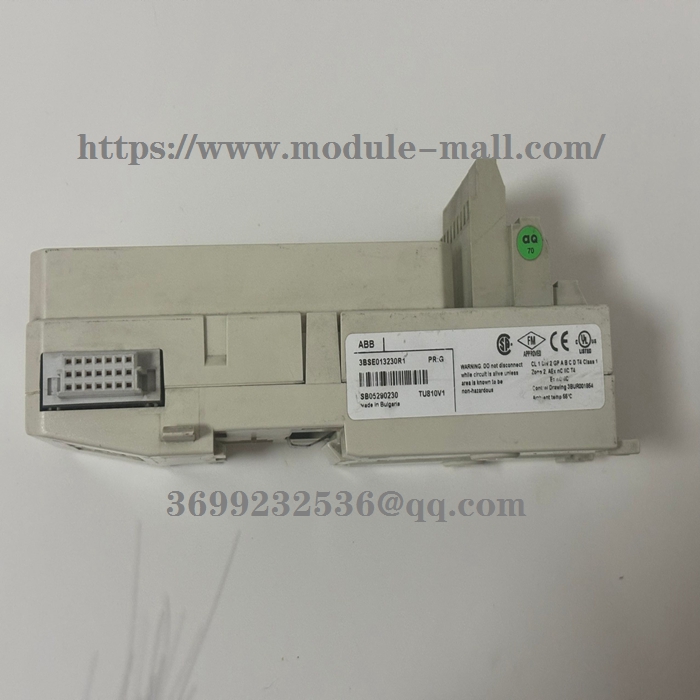

The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

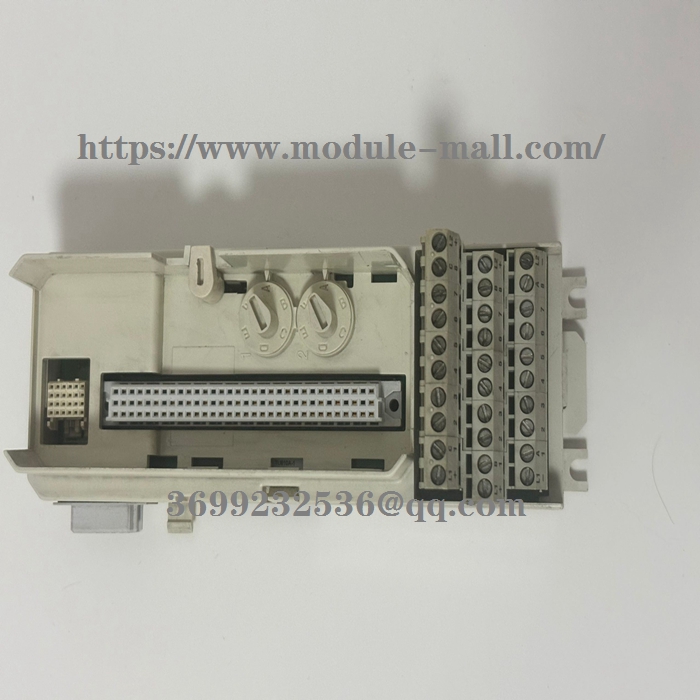

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

• Compact installation of I/O modules using one-wire connections.
• Up to 16 channels of field signals and process power connections.
• Connections to ModuleBus and I/O modules.
• Mechanical keying prevents insertion of the wrong I/O module.
• Latching device to DIN rail for grounding.
• DIN rail mounting.

Introduction to S800 i/o
Because it can be installed on site and close to sensors and actuators, the S800 i/o system reduces the installation cost by reducing the expenditure of cables. And because of the following features, such as "hot plug" modules, "online" reset and redundancy options, they ensure production and make profits continue to grow.
