Brand:ABB
model: AI830
Part No：3BSE008510R1
Status: New/Used

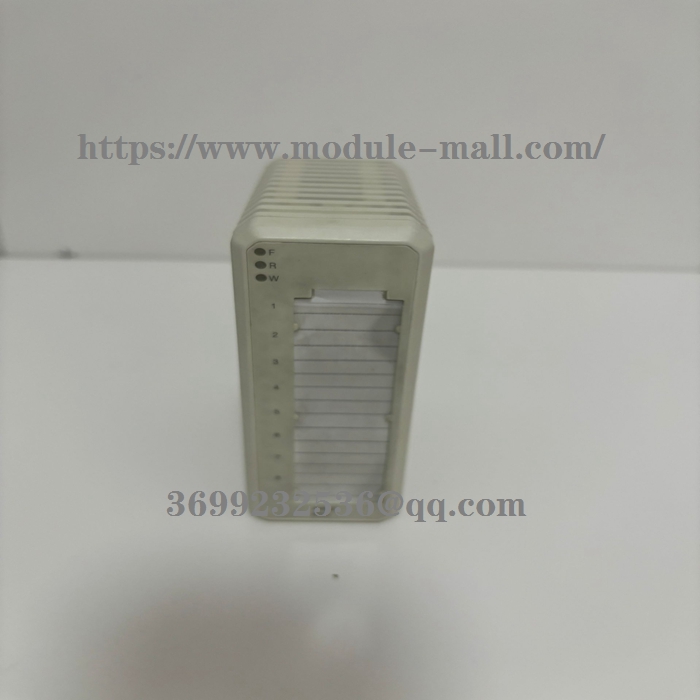

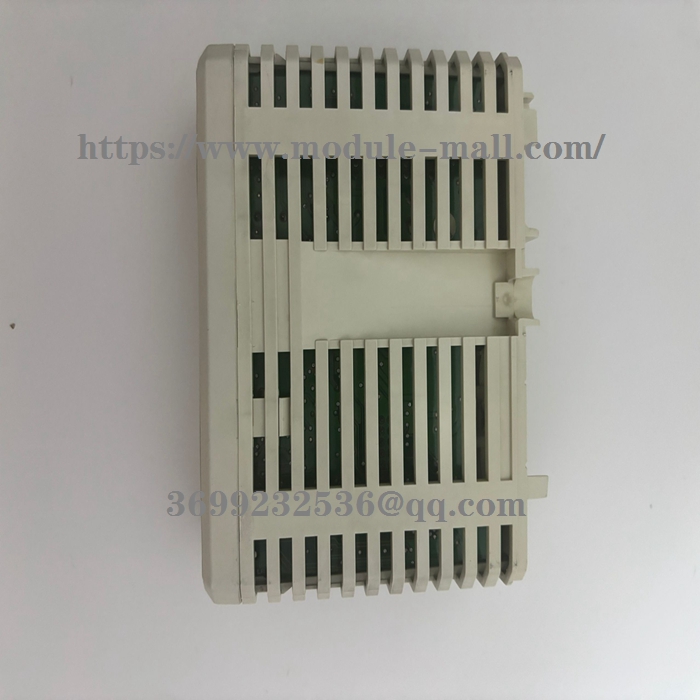

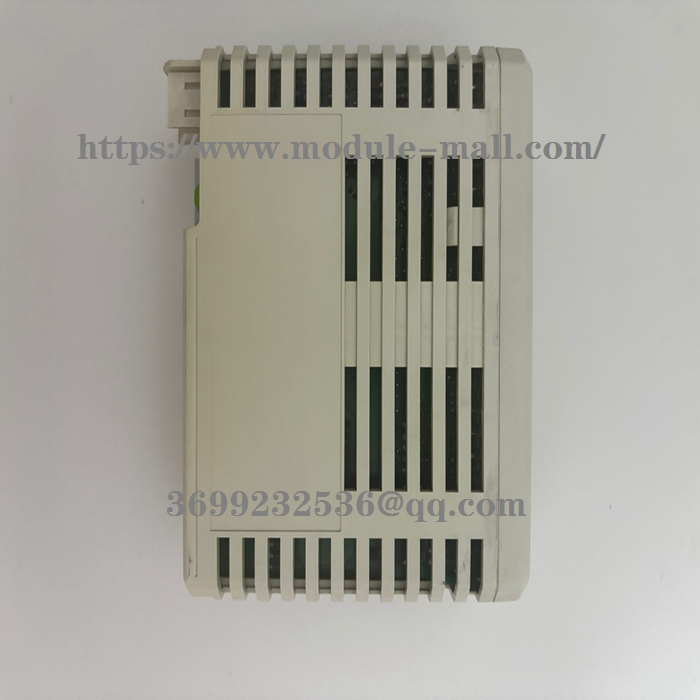

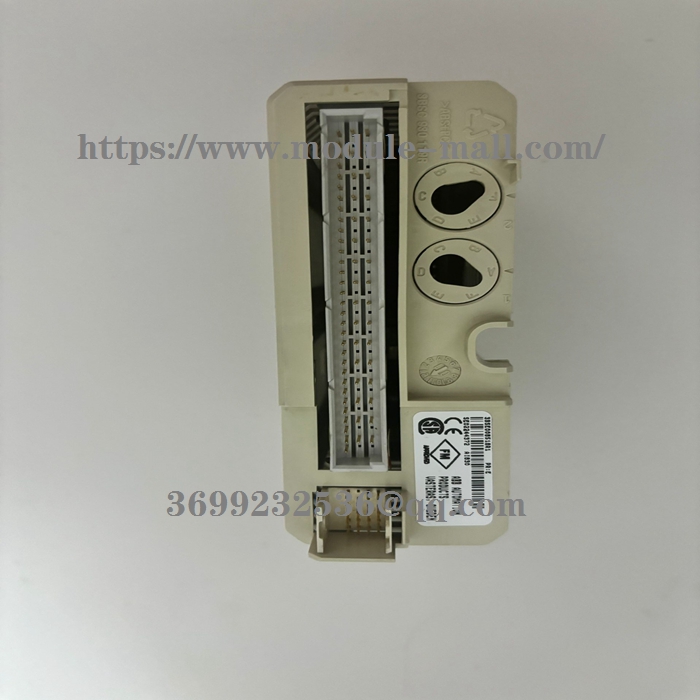

ABB AI830 digital output modules
ABB AI830
ABB AI830 digital output modules
Part No：3BSE008510R1

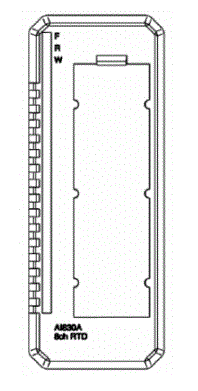

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.
The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.
Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
Four different types of MTUs can be used.
TU830 Extended MTU and TU810 (or TU814) Compact MTU support three wires connected to the device without the need for additional terminals
The TU812 compact MTU has a D-Sub25 pin (male) for connecting process connectors.
TU850 provides a detachable PTC fusion sensor/transmitter power outlet terminal for each channel.
Features and benefits
- 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
- 3-wire connection to RTDs
- 14 Bit resolution
-
Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor

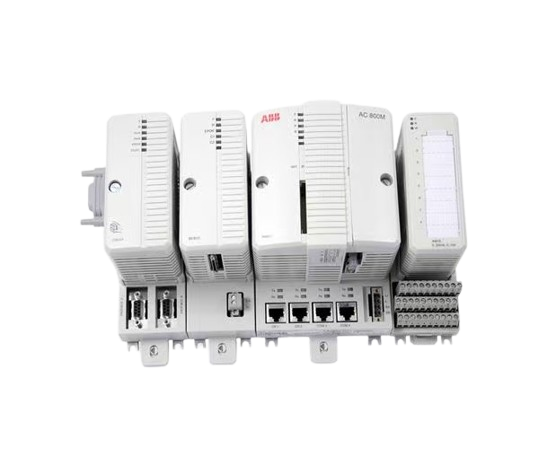

Because it can be installed on site and close to sensors and actuators, the S800 i/o system reduces the installation cost by reducing the expenditure of cables. And because of the following features, such as "hot plug" modules, "online" reset and redundancy options, they ensure production and make profits continue to grow.
