PROSOFT MVI56E-FLN

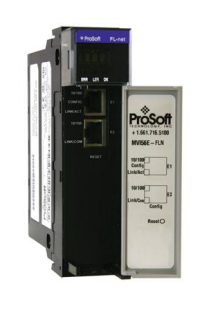

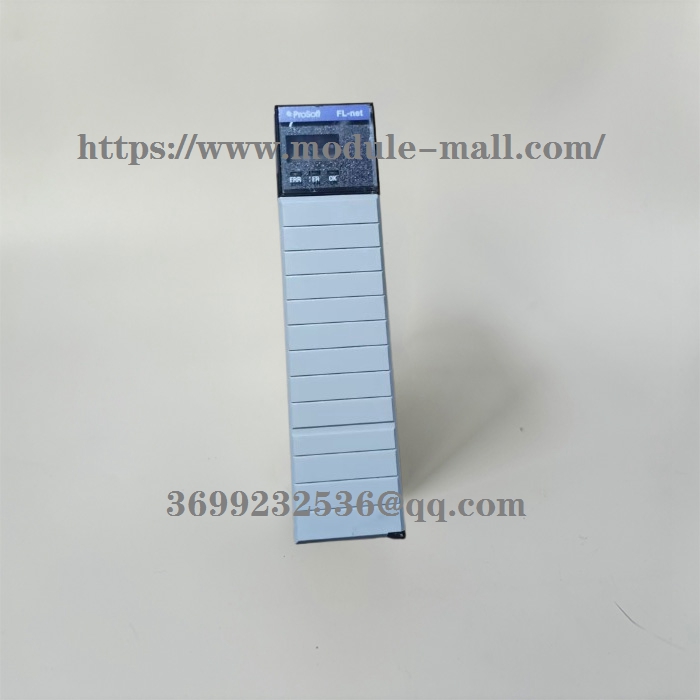

PROSOFT    MVI56E-FLN   FA Control Network EnhancedCommunication Module

The FA Control Network Enhanced Communication Module is a single slot solution that allows ControlLogix® compatible processors to easily interface with other FL-net protocol compatible devices. The module is certified for use with the standard FA control network (FL-net version 2.00; OPCN-2), as defined by the Japan Electrical Manufacturers Association (JEMA).

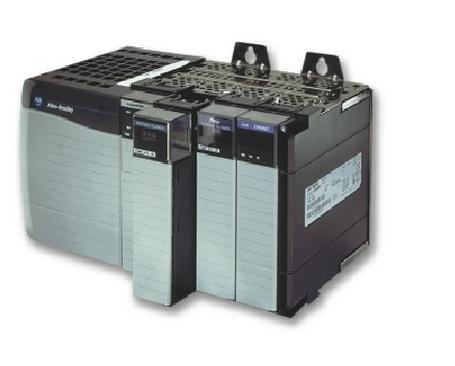

The FA control network module acts as a gateway between the FL-net network and the ControlLogix backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the FL-net network.

The module accepts commands to control and monitor the data stored in the FL-net databases. This data is passed between the module and the ControlLogix processor over the backplane for use in automated process and control applications.

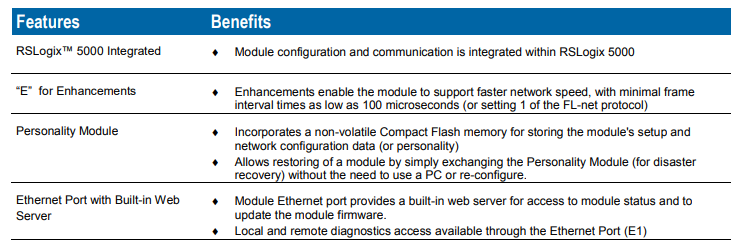

General Specifications

 Single-slot, 1756 backplane-compatible

 The module appears as an Input/Output module to the ControlLogix® (CLX)processor

 Ladder logic is used for data transfer between module and processor

 Can be installed in Local or Remote CLX racks

Functional Specifications MVI56E-FLN

 Message Transfer Command functions

• Log data read service (server function)

•Log data clear service (server function)

• Network Parameter Read (server function)

• Return Message (server function)

• Profile Read (server function)

• Network Management Table: According to FL-net version 2.00 specification

• Own-node Management Table: According to FL-net version 2.00 specificationo Participating Node Management Table: According to FL-net version 2.00specification

• Maximum 249 nodes of user data

 Discovery service: Allows ProSoft Configuration Builder (or separate utility) to findand display products located on the network with key product attributes such asname, serial number, and IP address.

 LED Display: LED provides detailed, plain English diagnostics and error informationfor the module, backplane communication, and network conditions.

 Master-less token control method.

 FA link protocol on Ethernet UDP/IP

 Cyclic data transfer: Supports virtual memory Area 1 (512 words) and Area 2 (8192words). The cyclic data is mapped to the modules I/O area.

 Configurable Mapping Feature: Optimization of Input Data mapping from thenetwork

 Configurable Minimum Frame Interval Time (0 to 50 with each unit being equal to100 ms)

 Configurable Token Watchdog Time (1 to 255 ms)
