TRICONEX3008 has the characteristics of high precision, high stability, and wide frequency range. It has three independent control channels, each of which can independently process input signals and output control signals. This design can increase the reliability and stability of the system, ensuring the normal operation of industrial control systems. TRICONEX3008 is widely used in various industrial control systems, such as petrochemicals, electricity, pharmaceuticals, etc. It can convert various sensor signals on site into digital signals, enabling remote monitoring and control. Meanwhile, it can also be used for data communication and linkage control with other devices.

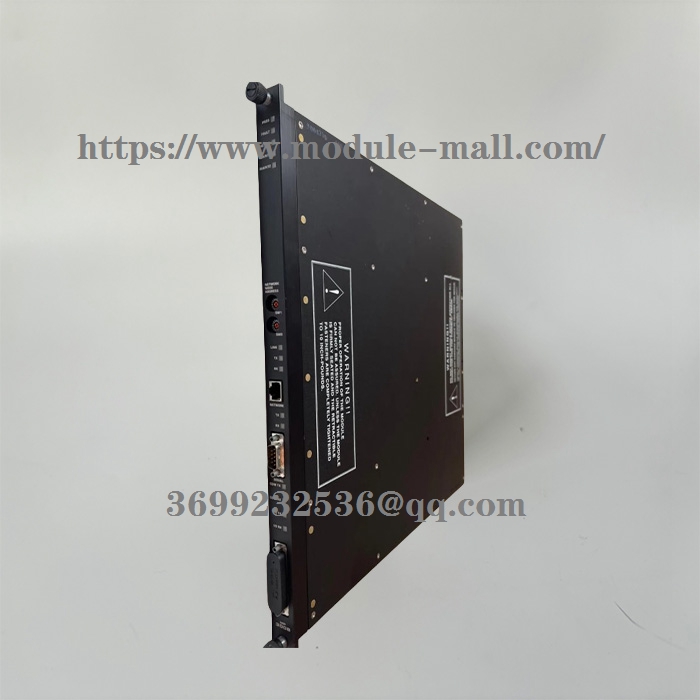

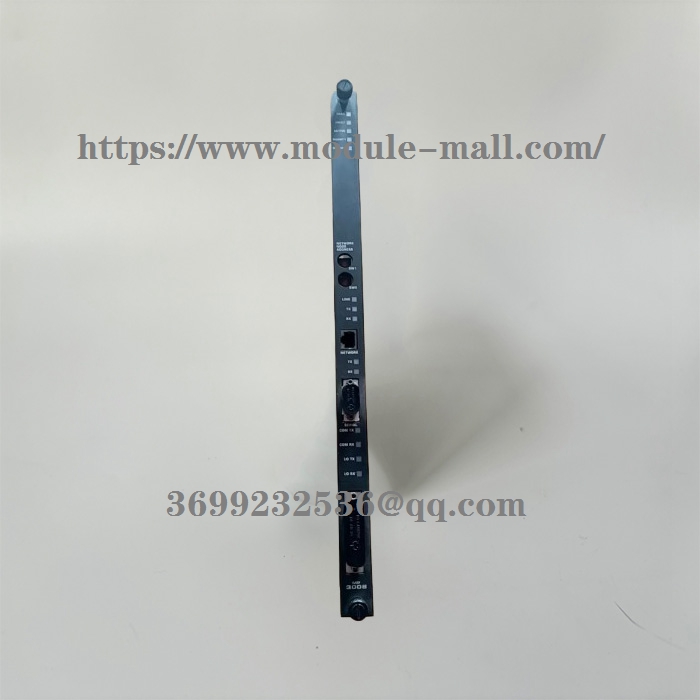

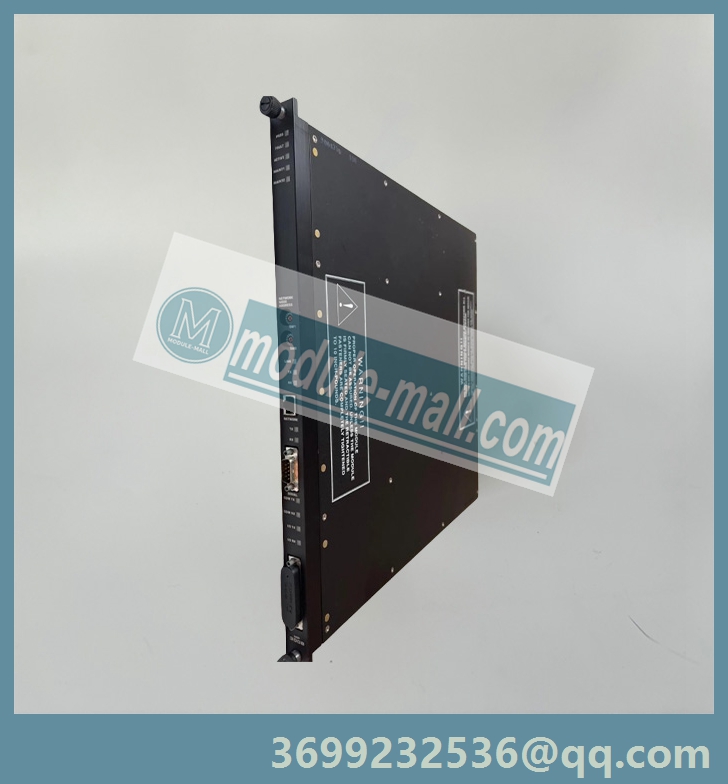

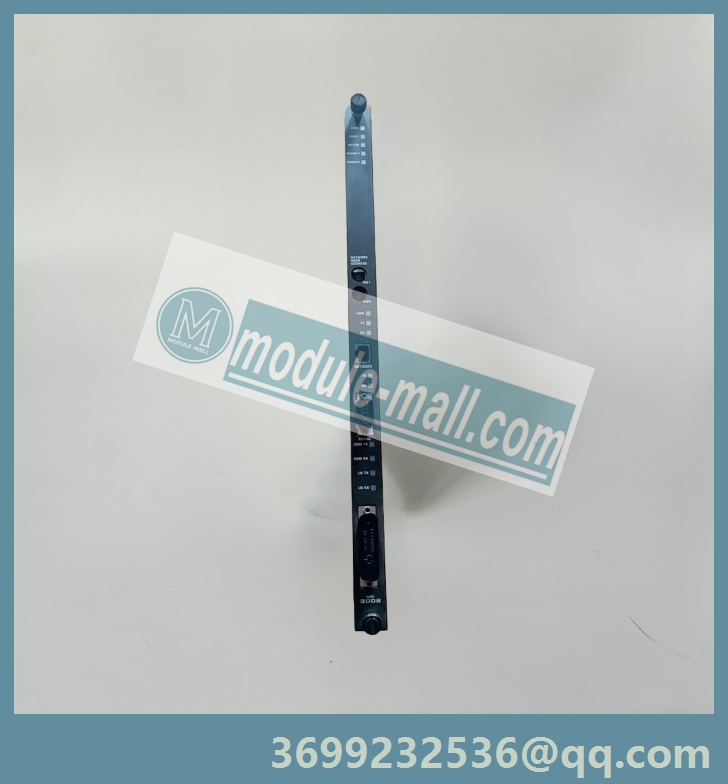

TRICONEX   3008   Main processor module

The 3008 main processor can communicate with the following communication modules:
一4119 and 4119A Enhanced Intelligent Communication Module (EICM), isolated
一4329 Network Communication Module (NCM)
一4409 Security Management Module (SMM)
一4509 High Speed Interface Module (HIM)
一4609 Advanced Communication Module (ACM)

In the picture:

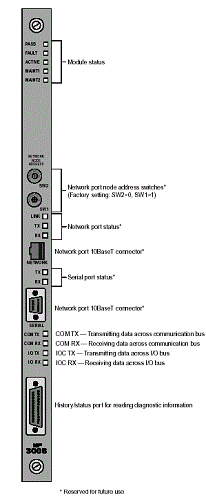

 ① (from top to bottom)
The module has passed the self diagnostic test.
The module is faulty and needs to be replaced
The module is executing a user written control program.
When the module is in the process of familiarizing itself again, this light flashes.
Discovered significant soft errors. Replace the module to avoid hard failure.

② COM TX transmits data through the COMM bus.
COM RX receives data from COMM bus.
I0C TX_ - transmits data through the I/O bus.
IOC RX - receives data from the I/O bus.
③ The experience/status port is used to read diagnostic information

physical description

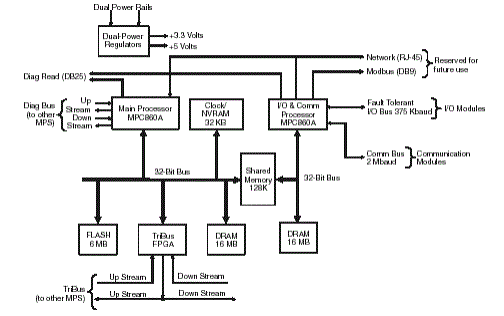

Each main processor operates independently, without sharing a common clock, voltage regulator, or circuit. A Motorola, 32-bit, 50MHz MPC860 is used as the main processor, while another MPC860 manages the I/O and communication subsystems.
Each main processor has a high-speed dedicated bus system called TriBus that performs the following functions:
一Communication between processors
一Hardware majority voting for all digital input data
一Comparison of Variables in a Control Program
TriBus utilizes a completely isolated serial communication channel for communication, with a rate of 25M baud. A direct access storage controller manages synchronization, transmission, voting, and data correction, working independently of the user's application or software execution.
#The 3008 main processor has 16MDRAM (without backup battery) and 32KSRAM, which are used to store user written control programs, SOE1 data, I/O data, diagnostics, and communication buffers. When the external power supply fails, SRAM can store user programs and persistent memory contacts intact for at least six months. TriBus hardware voting circuit periodically verifies the effectiveness of memory.

Sequence of Events Capability (SOE)
The main processor (# 3008 model) and communication module work together to provide SOE capability to the Tricon system. In each scan, the main processor checks for changes in the state of specified discrete variables called events. When an event occurs, the main processor stores the current state and timestamp of the variable in a storage area called a buffer, which is part of the SOE block. You can configure the SOE block using TRISTATION1131 and obtain event data using the SOE event recorder.
