3300 XL 8 mm Proximity Transducer System
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
1） One 3300 XL 8 mm probe,
2） One 3300 XL extension cable1 , and
3） One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.

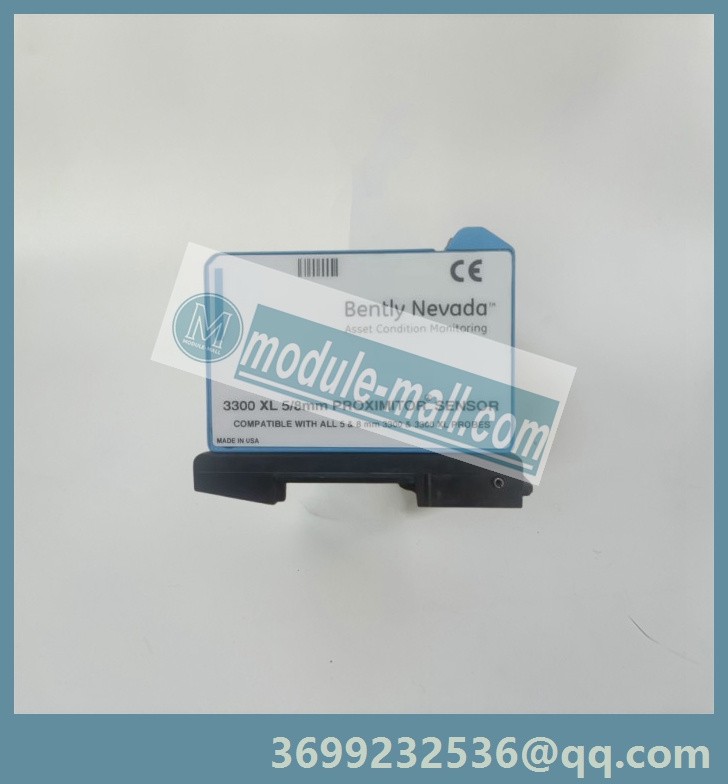

Proximitor Sensor
The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.
Proximity Probe and Extension Cable
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
Connectors
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.
You can order the 3300 XL 8 mm probes and extension cables with connector protectors already installed. We can also supply connector protectors separately for field installations (such as when an application must run the cable through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection8.
Other models: 330180-51-00，330180-51-CN，330980-50-00，330180-51-05，330180-91-CN，330180-X1-00，330780-90-00，330780-50-00，330180-50-00，330180-50-CN，330180-90-CN，330980-71-CN， 330180-51-00 ，330180-91-05 ，330180-51-CN……
Many products have not been launched yet. If you need more products, please contact us
Purchase consultation hotline: 18120742318
QQ：3699232536
Email: [email protected]
3300 XL 8 mm接近传感器系统
描述
3300 XL 8 mm接近传感器系统由以下部分组成：
1） 一个3300 XL 8mm探头，
2） 一根3300 XL延长电缆1，以及
3） 一个3300 XL前置器传感器2。
该系统提供的输出电压与探头尖端和观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。该系统的主要应用是流体膜轴承机器的振动和位置测量，以及键相器参考和速度测量3。
3300 XL 8 mm系统提供了我们涡流接近传感器系统中最先进的性能。标准3300 XL 8 mm 5米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油学会（API）670标准。所有3300 XL 8 mm接近传感器系统都提供了这种性能水平，并支持探头、延长电缆和Proximitor传感器的完全互换性，无需匹配或台架校准单个组件。
每个3300 XL 8 mm传感器系统组件都是向后兼容的，并且可以与其他非XL 3300系列5 mm和8 mm传感器组件5互换。这种兼容性包括3300 5 mm探头，适用于8 mm探头对于可用安装空间来说太大的应用6,7。
邻近传感器
3300 XL前置器传感器比以前的设计进行了许多改进。其物理包装使您可以在高密度DIN导轨安装中使用它。您还可以将传感器安装在传统的面板安装配置中，在这种配置中，它与旧的Proximitor传感器设计共享相同的4孔安装“足迹”。任何一种选择的安装底座都提供了电气隔离，并且不需要单独的隔离板。3300 XL前置器传感器对射频干扰具有高度免疫力，使您可以将其安装在玻璃纤维外壳中，而不会受到附近射频信号的不利影响。3300 XL前置器传感器改进的RFI/EMI抗扰性满足欧洲CE标志认证，无需特殊的屏蔽导管或金属外壳，从而降低了安装成本和复杂性。
3300 XL的SpringLoc端子板不需要特殊的安装工具，通过消除可能松动的螺钉式夹紧机构，可以实现更快、更坚固的现场接线连接。
接近探头和延长电缆
3300 XL探头和延长电缆也反映了对以前设计的改进。获得专利的TipLoc成型方法在探头尖端和探头主体之间提供了更坚固的结合。探头的电缆采用了获得专利的CableLoc设计，可提供330 N（75 lbf）的拉力，从而更牢固地连接探头电缆和探头尖端。
您还可以订购3300 XL 8 mm探头和带有可选FluidLoc电缆选项的延长电缆。此选项可防止油和其他液体通过电缆内部泄漏到机器外。
连接器
3300 XL探头、延长电缆和Proximitor传感器具有耐腐蚀的镀金ClickLoc连接器。这些连接器只需要手指拧紧的扭矩（拧紧时连接器会“咔嗒”一声），特殊设计的锁定机制可以防止连接器松动。这些连接器不需要特殊的工具进行安装或拆卸。
您可以订购已安装连接器保护器的3300 XL 8 mm探头和延长电缆。我们还可以为现场安装单独提供连接器保护器（例如当应用程序必须将电缆穿过限制性导管时）。我们建议为所有安装提供连接器保护器，以增强环境保护8。
其他型号：330180-51-00，330180-51-CN，330980-50-00，330180-51-05，330180-91-CN，330180-X1-00，330780-90-00，330780-50-00，330180-50-00，330180-50-CN，330180-90-CN，330980-71-CN， 330180-51-00 ，330180-91-05 ，330180-51-CN……
