SST-5136-DNP-CPCI

5136-DNP-CPCI Overview

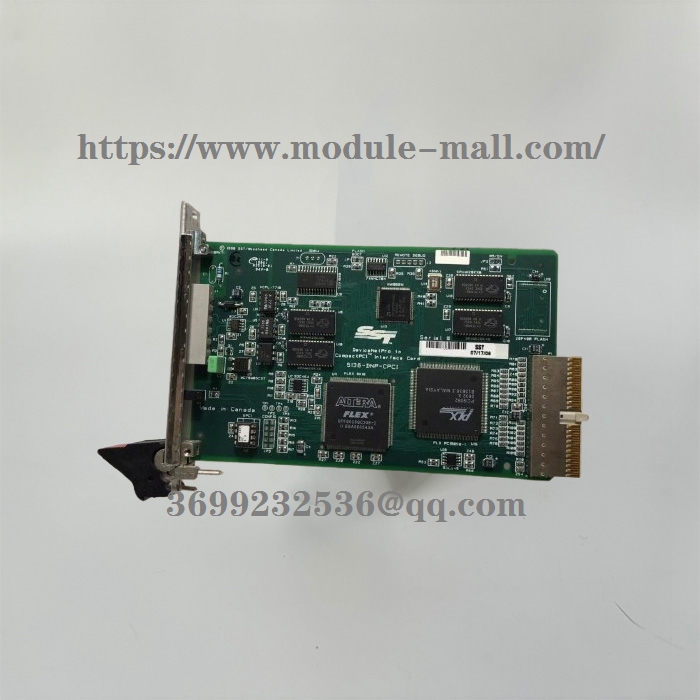

The 5136-DNP-CPCI is a CompactPCI interface card for communication with DeviceNet and other CAN-based networks.

The main features of the 5136-DNP-CPCI are:

• 33 MHz, 32 bit CompactPCI interface (fully compliant with PCI 2.1 Spec and CompactPCI 2.0 R2.1 spec)

• 40 MHz AM186EM microprocessor with 256K RAM

• 256K shared RAM

• Optically isolated CAN interface

• DeviceNet compatible 5-pin CAN connector

• DeviceNet compatible Network Status bicolor indicator

• Supports connection to non-powered (3 wire) CAN networks with external 12-24 VDC supply

• Compatible with CAN specification 2.0 part A

• Supports CAN data rates up to 1 Mbaud

• Supports standard DeviceNet data rates 125, 250 and 500 Kbaud

Overview

The 5136-DNP-CPCI is a 3U small form factor 32-bit CompactPCI interface card. The main features of the card are described in detail in the following sections.

CompactPCI Edge Connector

The CompactPCI connector can plug in to any 5V CompactPCI motherboard connector. The 5136-DNP-CPCI does not require that the motherboard connector supply 3.3V power. The 5136-DNP-CPCI will not plug in to 3.3V-only PCI connectors.

The CAN connector, a standard 5-pin removable connector, conforms to the standard DeviceNet pinout.

These are the DeviceNet network power supply terminals. Connect to an external 11-25 VDC power supply if the network cable does not have power supply conductors.
