SST-5136-DNP-PCI

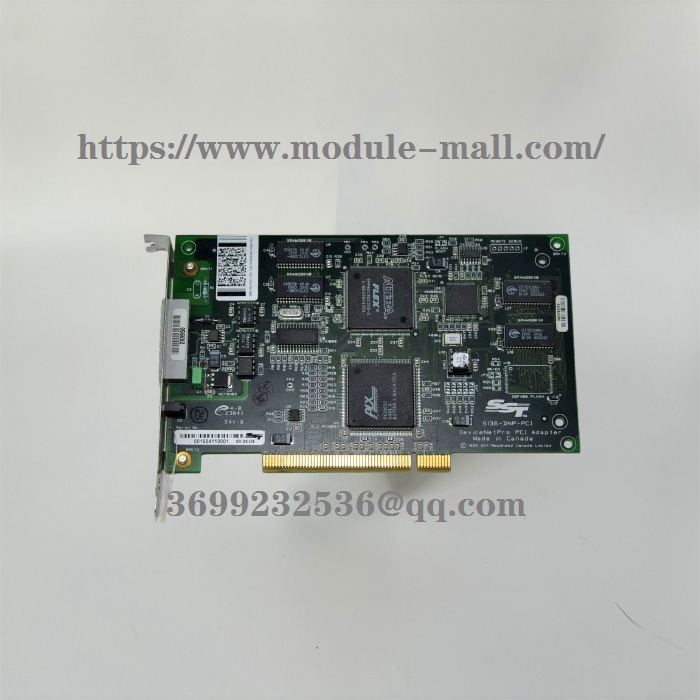

SST-5136-DNP-PCI   SST DeviceNet PCI Interface Card

Application

Many third party software programs support the SST DeviceNet interface card for various applications including:

•  Operator Interface and HMI

•  PC Control

•  Network Configuration, Troubleshooting andDiagnostics

•  I/O Emulation

•  Device Development

Features

• Entire DeviceNet Protocol is executed in hardware

• UCMM capable, Group 1, 2, and 3 dynamic explicit connections supported

• Simultaneous execution of Group 2 Client (master) and Server (slave) operation

• All DeviceNet standard baud rates supported: 125,250, and 500 Kbaud

• Full DeviceNet implementation including Change of State (COS) and explicit messaging

• DeviceNet compliance is ensured at the card level for I/O scanner and device applications

Custom Driver Development

SST provides an open documented memory map interface with example C source code and Windows 32-Bit DLLs and drivers.

Included withSST DeviceNet PCIInterface Card

• DeviceNet Network Analyzer and Monitor Diagnostic Software Tools

• DeviceNet Node Commissioning Tool

• OPC Server

• Custom driver development software

• Microsoft Windows 2000/NT/XP drivers/DLLs

• 24/7 global technical support
